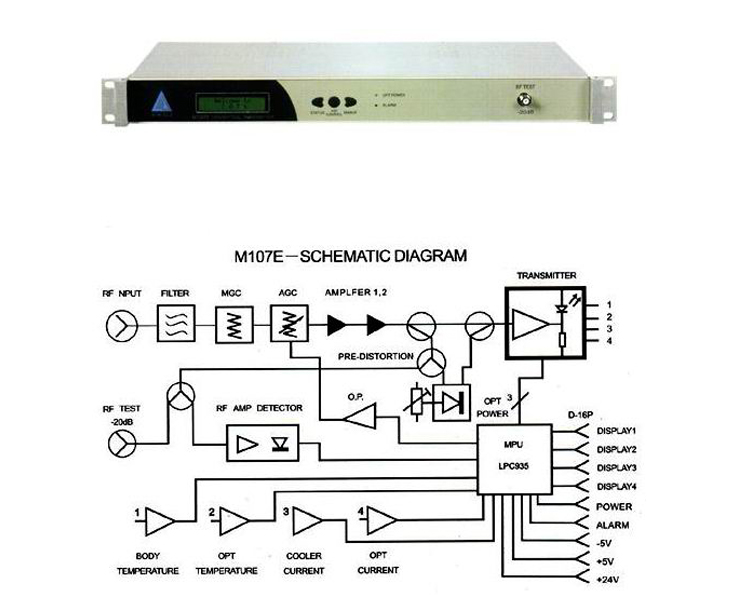

M107E

The M107E is an intelligent standard 19”1RU that can be monitored by network management software ensuring convenient status monitoring and system management.

The M107E optical transmitter comes with eleven(11)output power levels -4,8,10,12,14,16,18,20,22,24&26mW (Refer to Technical Specifications).This unit uses an internal isolated Distributed Feedback(DFB)laser-incorporating the latest technology.

Features

u  45～860MHz bandwidth;

u  High-performance DFB Iaser to increase the signal quality in HFC;

u  Low noise,low distortion and pre-AMP to meet low RF input signal;

u  Incorporating circuit design built with RFAAMP and pre-distortion correction.enhance equipment distortion specification;

u  Selective AGC(Automatic Gain Control)and field MGC (Manual Gain Control) enables superior link optimization and variable modulation depth (RF drive level);

u  Effective ATC(Automatic Temperature Control)and APC (Automatic Power Control) endble precise optical power levels;

u  Display for operating state and data;]

u  Front panel-20dB RF test port;

u  LED Alarm for low optical power output;

u  Advanced high efficiency switched power supply to meet the AC voltage wide rang (176V-264V)

u  Reliable thermal structure design to ensuring high stability and long operating lif time.
