0.45 SXP

Query

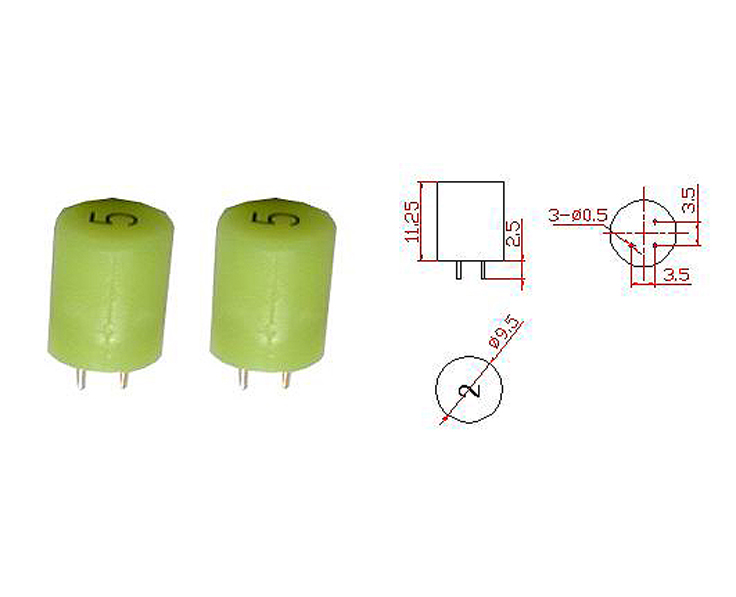

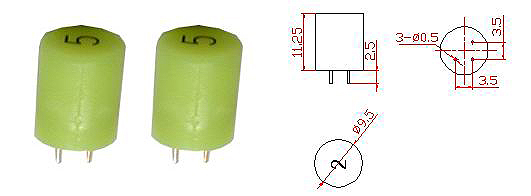

1.2 GHz SXP Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band. The pads are used during amplifier balancing to adjust amplifier signal levels as needed. The fixed loss produced (dB) is equal to the value printed on the top of each pad. The pads listed below are rated for operation up to 1.2 GHz. Within specific amplifier types, the pads are also used as equalizers.

These pads can be used for amplifiers, line extenders, nodes, combiners, etc.


Specifications

Item

Units

Value

Attenuation Values

dB

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Frequency

MHz

0 - 1200

Tolerance at 5 MHz

dB

± 0.2

Flatness

dB

± 0.5

Return Loss

dB

20.0

Impedance

Ω

75

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.


Item

Value

Box Material

Nylon Plastic

Color

Kelly

Pin Material

Copper

Plating

Cold over Nickel

Temperature

260

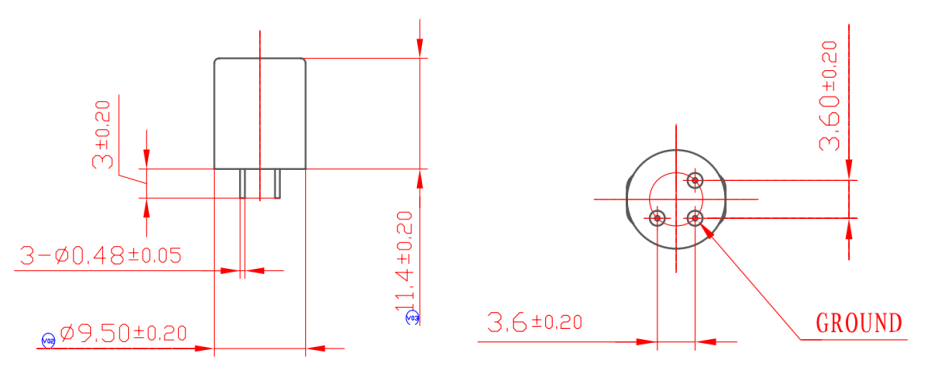

Dimensions




Ordering information

Description

Part Number

1.2 GHz 0.45”SXP Attenuator

- Available in 1 dB steps from 0 to 20 dB

9904002300(0 dB) sequentially through 9904002320 (20 dB)
