TH 0.45/1

Query





Attenuator reduces its loss as temperatures increases and increases its loss as temperature decreases.

Model

Attenuation (dB)

Coeff

Specification

Number

-20℃

0℃

25℃

40℃

60℃

80℃

DB/℃

TH-1

1.4

1.4

1.3

1.2

1.1

1

-

　

TH-2

2.4

2.3

2.1

1.9

1.6

1.4

-

　

TH-3

3.7

3.5

3

2.7

2.2

1.8

0.022

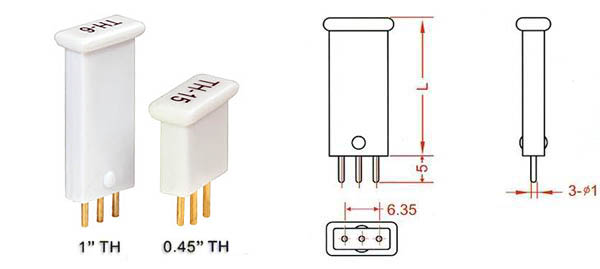

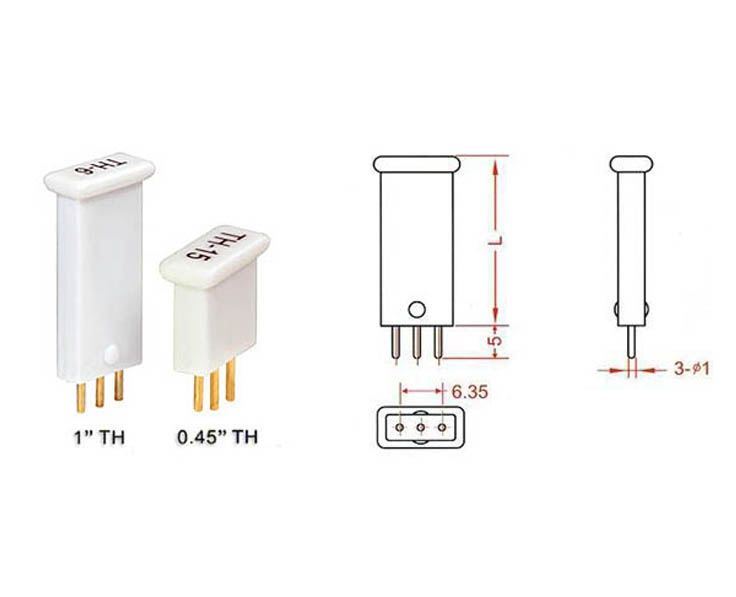

Length 0.45”and 1”

TH-4

4.7

4.5

4

3.7

3.2

2.8

0.022

Attenuation 1,2…15dB

TH-5

5.7

5.5

5

4.7

4.2

3.8

0.022

Impedance 75Ω

TH-6

6.7

6.5

6

5.7

5.2

4.8

0.022

Frequency 0-1200MHz

TH-7

7.7

7.5

7

6.7

6.2

5.8

0.022

Return Ioss ≥20dB

TH-8

8.7

8.5

8

7.7

7.2

6.8

0.022

Insertion Ioss +/-0.2-0.3 dB

TH-9

9.7

9.5

9

8.7

8.2

7.8

0.022

Flatness response +/-1 dB

TH-10

10.7

10.5

10

9.7

9.2

8.8

0.022

Body material PC

TH-11

11.7

11.5

11

10.7

10.2

9.8

0.022

Pin material gold plated brass

TH-12

12.7

12.5

12

11.7

11.2

10.8

0.022

Center pin is ground, outside RF in/out

TH-13

13.7

13.5

13

12.7

12.2

11.8

0.022

　

TH-14

14.7

14.5

14

13.7

13.2

12.8

0.022

　

TH-15

15.7

15.5

15

14.7

14.2

13.8

0.022

　
