1.0G BGS10XX

Query

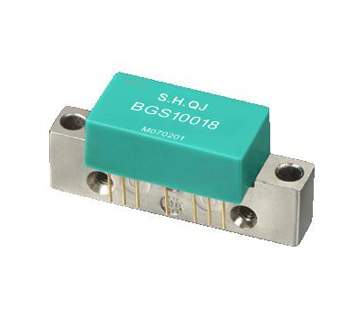

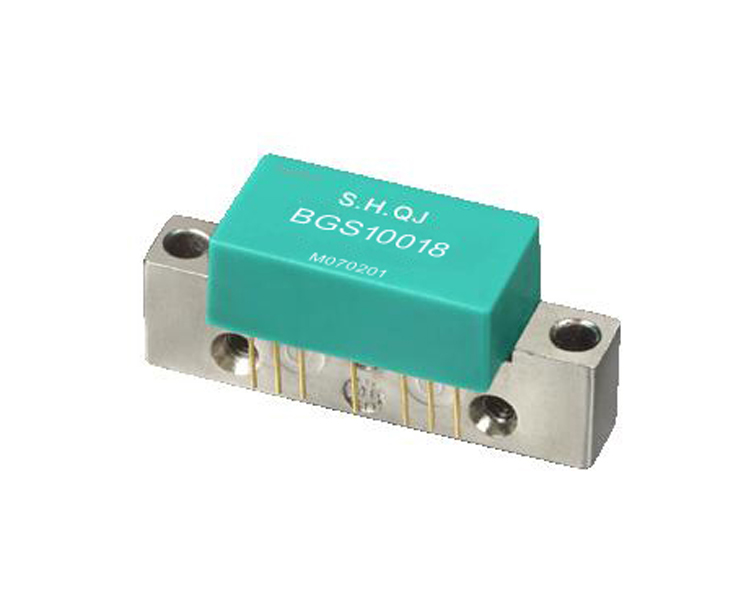

The BGS10XX is a Si transistor series gain block. It is optimized for exceptionally low distortion and low noise figure in a 75 Ω amplifier circuit. It provides excellent input and output return loss over the 45 to 1000 MHz CATV HFC infrastructure.

The device is ideally suited for use in CATV applications where low distortion and high output power are required.

The device package is complied with standard SOT-115J.



Features

18, 22, 25, 34 dB Gain

24 V DC Bias

102 dBμV/CH Output Power Level @ 1000 MHz

Excellent Linearity

Extremely Low Distortion

Extremely Low Noise

200 mA at 24 VDC



Applications

45 to 1000 MHz CATV Amplifier Systems








Electrical Specifications:  T = +25 °C, V = 24 V, Zin = Zout = 75 Ω

Parameter

Units

Min.

Typ.

Max.

Test Conditions





Gain

dB

18

19

20

45 - 1000 MHz

22

23.5

24

25

26.5

27

34

34.5

35

Slope

dB

1.0

2.0

2.0

45 - 1000 MHz

Flatness

dB

-

±0.5

-

45 - 1000 MHz

Noise Figure

dB

-

8.0

-

45 - 1000 MHz

Input Return Loss

dB

-

18

-

45 - 1000 MHz

Output Return Loss

dB

-

18

-

45 - 1000 MHz

Total Current Consumption (DC)

mA

-

200



+ 24 V

CTB*

dB

-

62

-

102dBμV @ 1000 MHz

CSO*

dB

-

60

-

102dBμV @ 1000 MHz

XMOD*

dB

-

68

-

102dBμV @ 1000 MHz

 * 60 PAL (analog) channels + QAM channels (- 6 dB offset); flat.



Handling Procedures

Please observe the following precautions to avoid damage:


Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity.

Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

RF Input Level

dBmV

50

DC Supply Over-Voltag(5 minutes)

V

30

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 20 to +100

  Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.




Ordering information

Description

Part Number

BGS1018 Si Transistor Series Gain Block, 24 V

9940000050

BGS1022 Si Transistor Series Gain Block, 24 V

9940000051

BGS1025 Si Transistor Series Gain Block, 24 V

9940000052

BGS1034 Si Transistor Series Gain Block, 24 V

9940000053
