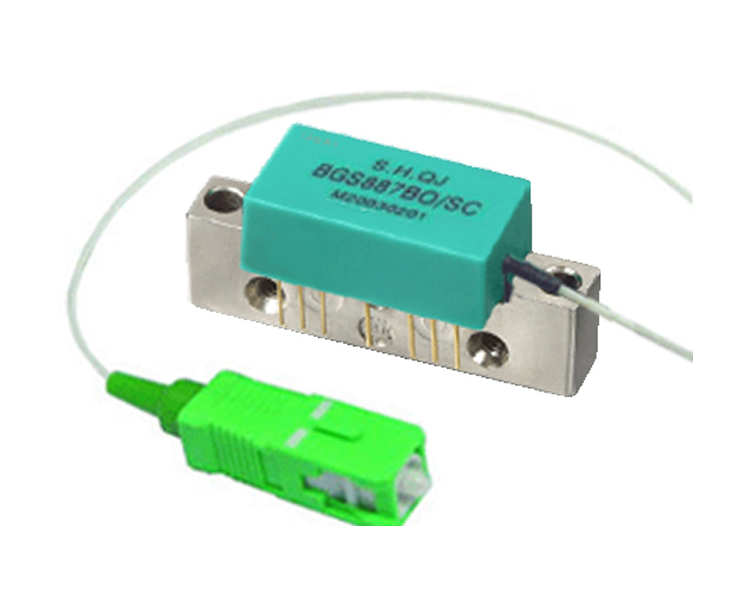

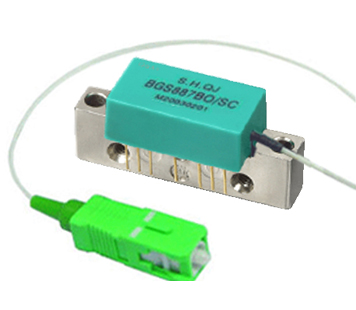

BGS887BO

Query


FEATURES

u  Excellent linearity

u  Extremely low noise

u  Extremely FLATNESS

u  Stanf CATV outline

u  Rugged construction

u  Gold metallization ensures execellent reliabilly

u  FC/APC or SC/APC connecter (JDC version)

APPLICATIONS

CATV systems operating in the frequency range of 40 to 870MHz.

DESCRIPTION

package operating with a voltage supply of 24V(DC),The module contains a monomode optical input suitable for wavelengths from 1290 to 1600nm ,employing GaAs for amplifier ,an electrical output with an impedance of 75Ω.


SYMBOL

PARAMETER

CONDITIONS

MIN

MAX

UNIT

S

responsivity

λ =1310nm

750



V/W

FL

flatness of frequency response

f=45 to 870MHz



±0.5

dB

SL

slope cable equivaent

f=45-870MHz

0

2

dB

S22

output return loss

f=45-870MHz

11

-

dB

Optical return loss

f1=45-870MHz

45



dB

ILc

connecter optical insertion loss



0.5

dB

d2

second order distortion

note 1



-72

dB

d3

third order distortion

note 2



-82

dB

F

equivalent noise input

f1=45MHz



7

pA/ HZ

Sλ

spectral sensitivity

λ =1310±20nm

0.85



A/W

λ =1550±20nm

0.9



A/W

λ

optical wavelength

1290

1600

nm

Itot

total current consumption(DC)

note 3

-

230

mA

Note :

  1. Two laser test ;each laser with 40% modulation index:fp=135MHz;Pp=0.5mW;fp=189.25MHz;pq=0.5mW,measured at fp+fq=342.25MHz
  2. Three laser test; each laser with 40% modulation index:fp=326.25MHz;Pp=0.33mW;fp=333.25MHz;Pq=0.33mW;fr=335.25MHz;Pr=0.33mW,measured at fp+fq-fr=342.25MHz
