5 - 42 MHz Reverse Cable Equalizer

Query

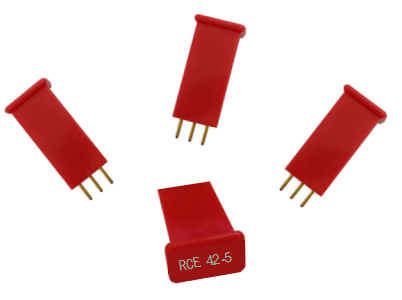

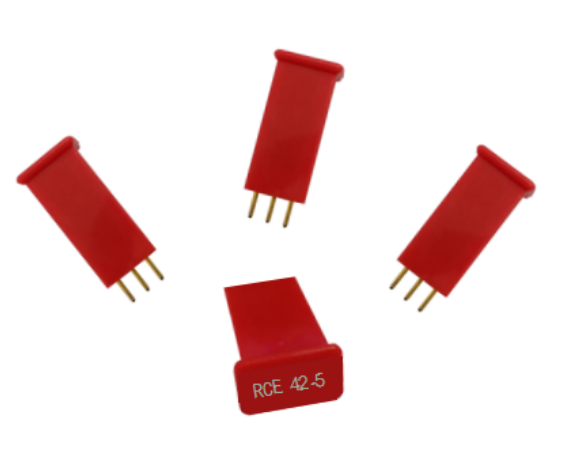

5 - 42 MHz Reverse Cable Equalizers produce a tilt that frequency response is opposite to coaxial cables. They are normally used to achieve desired tilt during station balancing to counteract the tilt produced by coaxial cables. The dB values and rated frequency 42 MHz are printed on the top of each equalizer.

These accessories can be used for nodes, amplifiers, line extenders, etc.


Specifications

Item

Units

Value

EQ Values

dB

0

1

2

3

4

5

Tilt ( 5 to 42 MHz )

dB

0

1

2

3

4

5

Frequency

MHz

5 - 42

Tolerance EQ Val.max.

dB

± 0.5

Insertion Loss @ 42 MHz

dB

1.0

Flatness

dB

± 0.3

Return Loss

dB

18.0

Impedance

Ω

75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

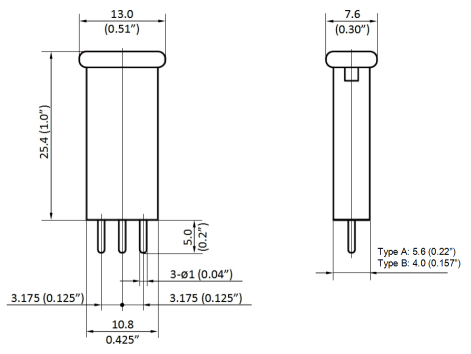

Dimensions





Description

Part Number

5 - 42 MHz JXP Reverse Cable Equalizer 0 dB, 1 inch, Red

9907001500

5 - 42 MHz JXP Reverse Cable Equalizer 1 dB, 1 inch, Red

9907001501

5 - 42 MHz JXP Reverse Cable Equalizer 2 dB, 1 inch, Red

9907001502

5 - 42 MHz JXP Reverse Cable Equalizer 3 dB, 1 inch, Red

9907001503

5 - 42 MHz JXP Reverse Cable Equalizer 4 dB, 1 inch, Red

9907001504

5 - 42 MHz JXP Reverse Cable Equalizer 5 dB, 1 inch, Red

9907001505
