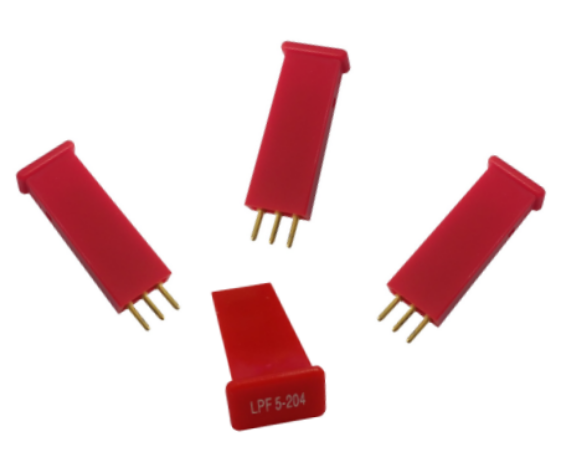

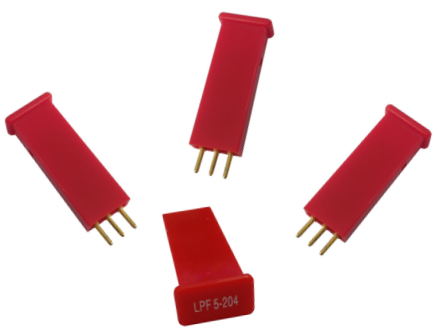

5 - 204 MHz Low Pass Filter has a cutoff frequency of 204 MHz. This filter isolates the forward band, together with additional filtering provided on the amplifier motherboards, such as diplexers, has enough isolation to prevent the ingress from unwanted signal. It also provides enough isolation so that there is no interference between the forward and reverse paths.
Several different lengths can be optional such as 1”, 1.26”, 1.37”, etc.
These accessories can be used for all the nodes, amplifiers, line extenders, etc.
Specifications
Item | Units | Value |
Frequency | MHz | 5 - 204 |
Insertion Loss | dB | 0.4 @ 5 - 200 MHz |
dB | 1.1 @ 200 - 204 MHz | |
Stop Band Loss | dB | 27.0 @ 258 - 1218 MHz |
Return Loss | dB | 24 |
Impedance | Ω | 75 |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

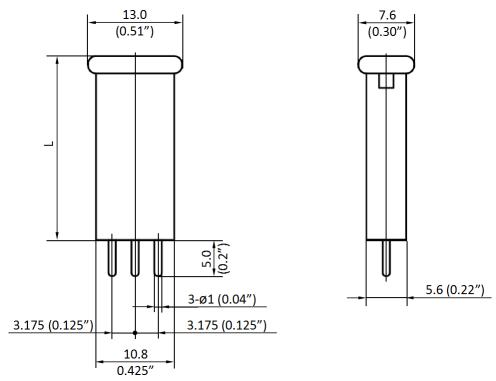

Dimensions
L = 25.4mm (1 inch), or 32.0mm (1.26 inch), or 34.8mm (1.37 inch)
Description | Part Number |
5 - 204 MHz JXP Low Pass Filter, 1 inch, Red | 9909000302 |
5 - 204 MHz JXP Low Pass Filter, 1.26 inch, Red | 9909000303 |
5 - 204 MHz JXP Low Pass Filter, 1.37 inch, Red | 9909000304 |
