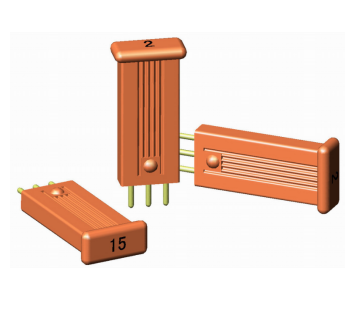

1.8 GHz JXP Attenuators produce flat (even) loss across Cable TV forward and reverse frequency band to support Docsis 3.1 standard. The pads are used during amplifier balancing to adjust amplifier signal levels as needed. The fixed loss produced (dB) is equal to the value printed on the top of each pad. The pads listed below are rated for operation up to 1.8 GHz. Within specific amplifier types, the pads are also used as equalizers.
These pads can be used for amplifiers, line extenders, nodes, combiners, etc.
Specifications
Item | Units | Value | ||||||||||||||||||||
Attenuation Values | dB | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
Frequency | MHz | 5 - 1800 | ||||||||||||||||||||
Insertion Loss | dB | ≤ 0.5 | ||||||||||||||||||||
Flatness | dB | ± 0.3 | ||||||||||||||||||||
Return Loss | dB | ≥ 20.0 @ 5-1200MHz ≥ 18.0 @ 1201-1800MHz | ||||||||||||||||||||
Impedance | Ω | 75 | ||||||||||||||||||||
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Dimensions

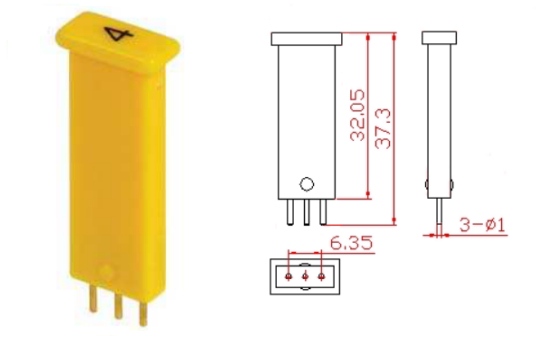

JXP 0.45” |
|

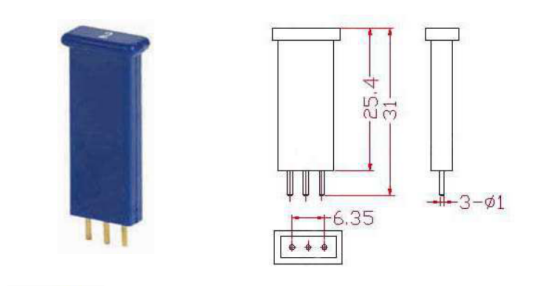

JXP 1” |
|

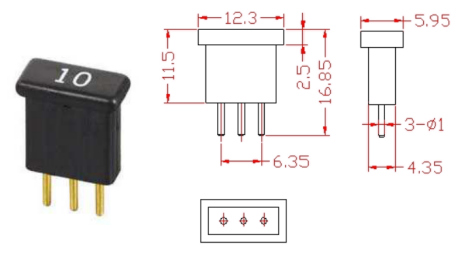

JXP 1.05” |
|

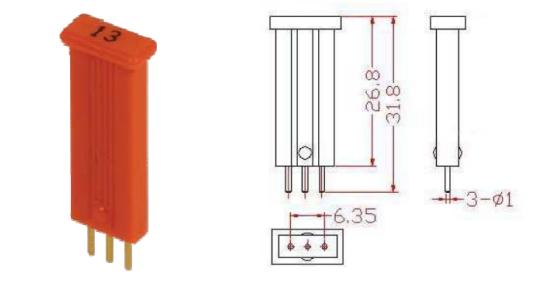

JXP 1.26” |
|
Ordering Information
The attenuator is available in a wide variety of length, stripe, dot and color. Consult your Customer Service Representative or Applications Engineer to determine the best choose for your particular application.
