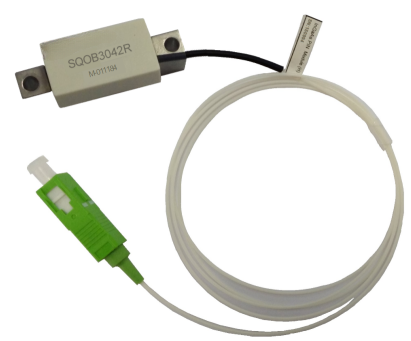

SQOB3042R 300MHz 光反向接收模块

询价


The SQOB3042R is a high dynamic range optical reverse receiver block with amplifier circuits. It has a single-mode optical input suitable for 1100 to 1650 nm wavelengths, a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75 Ω.


The device is ideally suited for use in CATV return path applications, including DOCSIS 3.1 systems where low distortions and low noise figure are required.

The device package is complied with standard SOT-115 where the non-jacketed fiber has an SC/APC or FC/APC connector.



Features

  l 42dBmV Output Level @ 0dBm Optical Input

  l +5 V Amp Bias, +24 V PD Bias

  l Wide Bandwidth for DOCSIS 3.1

  l Extremely Low noise

  l Excellent flatness

  l Standard CATV outline

  l Rugged construction

  l Gold metallization ensures excellent reliability

  l High optical input power range



Applications

  l Cable TV optical transmission systems operating in the 5 to 300 MHz reverse path.


Specifications:  T = +25 °C, Vamp = +5 V, VPD = +24 VZ = 75 Ω

Parameter

Units

Min.

Typ.

Max.

Test Conditions

Optical Wavelength

nm

1100

-

1650



Frequency Range

MHz

5

-

300



Responsivity

V/W

750

-

-

λ = 1310 nm, SC/APC or FC/APC

Optical Input Return Loss

dB

-

45

-


Equivalent Noise Input

pA/Hz

-

4

-

5 - 300 MHz



Spectral Sensitivity

A/W

0.85

0.90

-

-

λ = 1310 ± 20 nm

λ = 1550 ± 20 nm

RF Output Level

dBmV

-

42

-

0 dBm Optical Input

Flatness

dB

-

-

±0.25

5 - 300 MHz

Output Return Loss

dB

-

16

-

5 - 300 MHz

Amplifier Bias Current (DC)

mA

-

95

115

5 V

Photo Diode Bias Current (DC)

mA



10



+ 24 V

Length of Optical Fiber

mm



1000



Fiber: SM Type; 9/125 µm


Handling Procedures

Please observe the following precautions to avoid damage:



Fiberglass optical coupling

Maximum tensile strength = 5 N. Minimum bending radius = 35 mm.



Static Sensitivity

Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.



Absolute Maximum Ratings

Parameter

Unit

Rating

Optical Input Power (Continues)

mW

5

DC Supply Over-Voltag(5 minutes)

V

6.5 (Amp), 30 (PD)

Storage Temperature

°C

- 40 to +100

Operating Mounting Base Temperature

°C

- 30 to +85

      Caution! ESD sensitive device.                                RoHS

 Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum                      Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is                not implied.

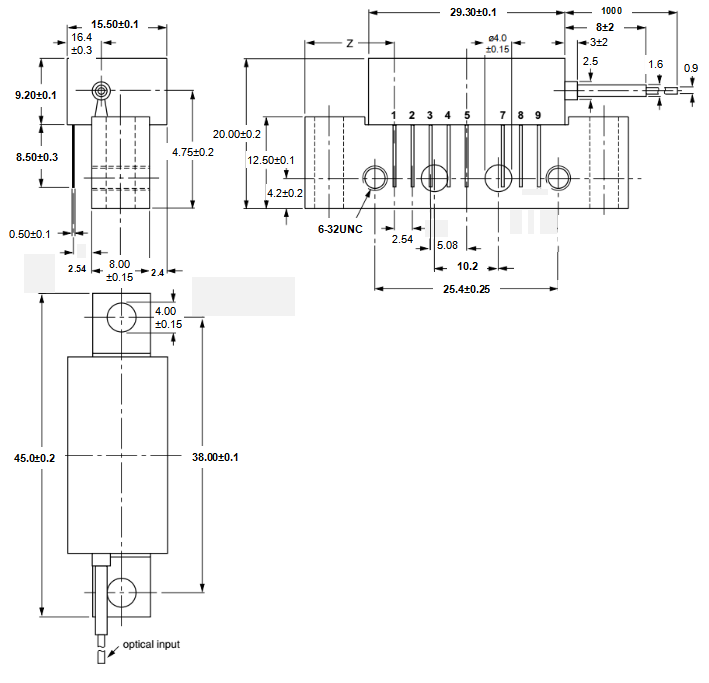

Package Drawing (Dimensions in millimeters)


Pinning:

PIN

Description

1

Monitor Current

2

Common

3

Common

4

+VB of the amplifier

5

+VB of the photo diode

7

Common

8

Common

9

Output


Simplified Outline

Type

Simplified Outline

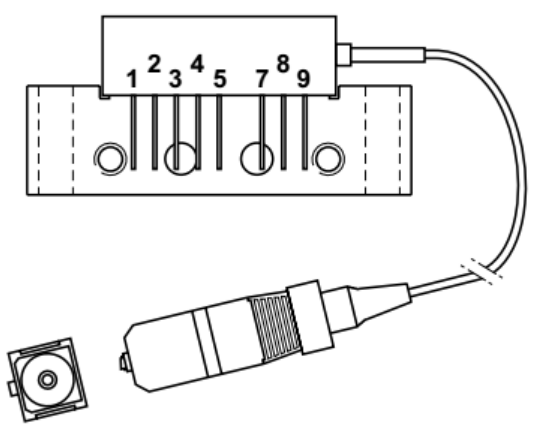

SQOB3042R with SC/APC connector

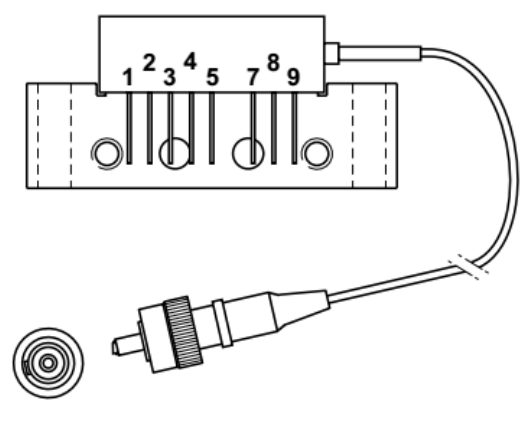

SQOB3042R with FC/APC connector






Description

Part Number

SQOB3042R Optical Receiver Block, with SC/APC Connector

9945000011

SQOB3042R Optical Receiver Block, with FC/APC Connector

9945000012
