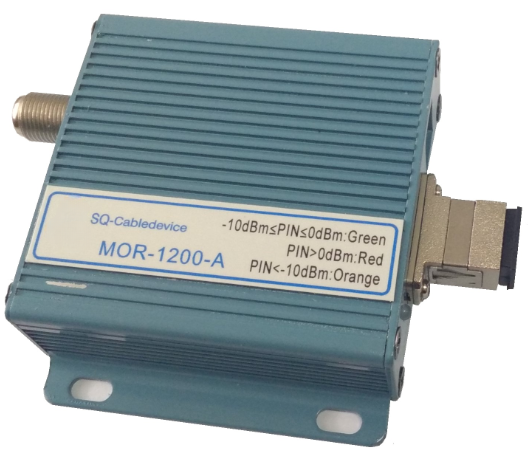

MOR-1200-A Micro Optical Receiver is a 1.2 GHz receiver specially designed for FTTH architecture. MOR-1200-A Micro Optical Receiver provides a single output in small aluminum housing, compact and reasonable internal circuit structure and excellent performance. It is a best choice for residential area and home fiber optical network.
Features
l Supports 1.2 GHz RF pass band
l AGC built-in with -10 to 0 dBm optical input range
l LED indicator for optical input power with 3 status
l Low power consumption
l Solid aluminum small housing
l Installation easily
Specifications
Table 1. Forward Section Specifications
Item | Units | Value |
Optical Section | ||
Wavelength | nm | 1100 - 1650 |
Optical Input Power Range | dBm | -10 - 0 |
Optical AGC Range | dBm | -10 - 0 |
Maximum Optical Input Power | dBm | + 3 |
Optical Return Loss | dB | 45 |
Optical Connector | - | SC / APC |
RF Section |
|
|
Frequency Range | MHz | 47 - 1200 |
Frequency Response | dB | ± 0.75 |
RF Output Level1 | dBmV | 20 |
RF Output Stability @ AGC | dB | ± 1.0 |
Return Loss | dB | 16 |
Optical Power Indicator ( LED ) | - | - Orange: Pin < - 10 dBm - Green: - 10 < Pin < 0 dBm - Red: Pin > 0 dBm |
Link Section |
|
|
Distortion @ 59 PAL D/K + Digital2 CTB CSO |
dB dB |
60 60 |
Notes: 1. RF output level with -10 to 0 dBm optical input power, 3.5% OMI.
2. Distortion performance reference output level is 20 dBmV ( - 3 dBm optical input power, 3.5% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz. Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.
Table 2. General Specifications
Item | Units | Value |
External Power Supply, 9 Voltage | V DC | 9 VDC, 180mA |
RF Connectors | - | F - female, Imperial |
RF Impedance | Ω | 75 |
Dimensions (W x H x D) | mm | 93 x 75 x 22 |
Weight | kg | 0.1 |
Operating Temperature | °C | 0 - + 40 |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Description | Part Number |
MOR-1200-A Micro Optical Receiver | 9934000001 |
