MOR-1000-C Micro Optical Receiver

Query

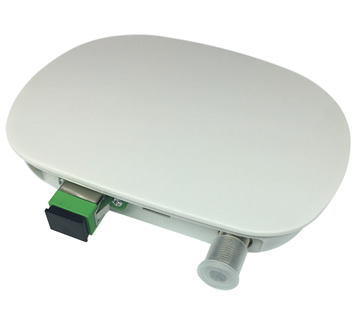

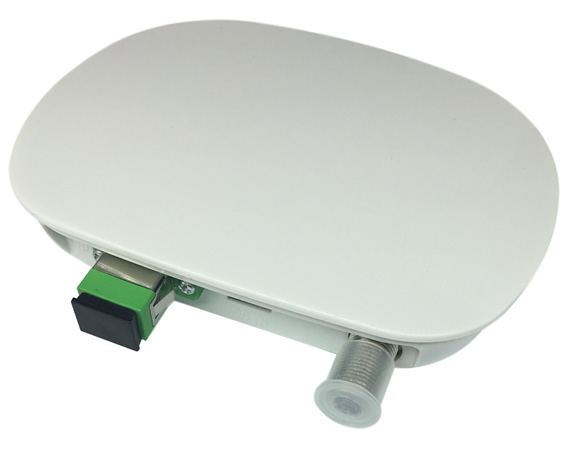

MOR-1000-C Micro Optical Receiver is a 1.0 GHz receiver specially designed for FTTH architecture. MOR-1000-C Micro Optical Receiver provides a single output in small plastic housing, compact and reasonable internal circuit structure and excellent performance. It is a best choice for residential area and home fiber optical network.

Features

l  Supports 1.0 GHz RF pass band

l  AGC built-in with -12 to -2 dBm optical input range

l  LED indicator for optical input power with 2 status

l  Low power consumption with 12 V DC voltage power supply

l  Lovely plastic small housing

l  Installation easily


Specifications

Table 1. Forward Section Specifications

Item

Units

Value

Optical Section

Wavelength

nm

1100 - 1600

Optical Input Power Range

dBm

-15 - +1

Optical AGC Range

-

± 2 @ -12 - -2 dBm

Maximum Optical Input Power

dBm

+ 3

Optical Return Loss

dB

45

Optical Connector

-

SC / APC

RF Section





Frequency Range

MHz

45 - 1003

Frequency Response

dB

± 1.0

RF Output Level

dBµV

78 @ -11dBm Optical Input Power

Return Loss

dB

14

Optical Power Indicator ( LED )

-

- Red :  Pin < -18 dBm

- Green: Pin ≥ -18 dBm

Link Section*





C/N

dB

45

Distortion @ 59 PAL D/K + Digital

CTB

CSO



dB

dB



60

60

Notes:  Distortion performance reference output level is 78 dBµV ( - 11 dBm optical input power, 3.5% OMI).


Table 2. General Specifications

Item

Units

Value

External Power Supply, 12 Voltage

V DC

12 VDC

Power Consumption

W

2

RF Connectors

-

F - female, Imperial

RF Impedance

Ω

75

Dimensions (W x H x D)

mm

105 x 87 x 25

Weight

g

60

Operating Temperature

°C

-20 - +55

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C).


Description

Part Number

MOR-1000-C Micro Optical Receiver

    9934000012

9934000012
