SQFR-1B1 Passive Optical Receiver

Query

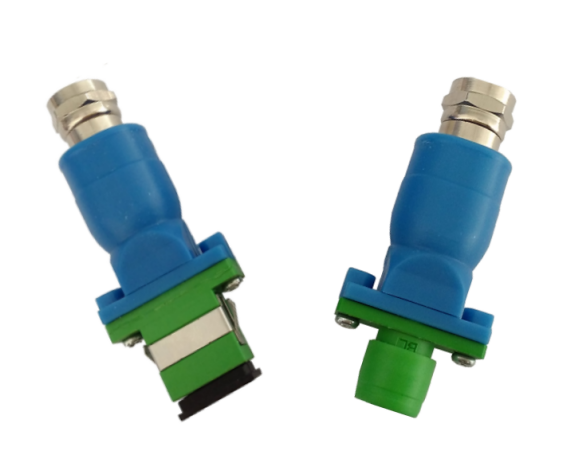

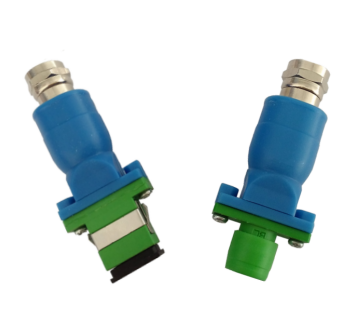

SQFR-1B1 Passive Optical Receiver is a 1.0 GHz receiver specially designed for digital FTTH architecture. It adopts the high sensitivity PIN diode. Without power supply, no power consumption. When the input optical power is -1 dBm ( Pin = -1 dBm ), RF output level is 65 dBµV ( Vo = 65 dBµV ). It can be economical and flexible for triple play, fiber to the home network applications.



Features

High reliability

No power supply required

Supports 1.0 GHz RF pass band

Small plastic housing lovely

Installation easily


Specifications

Table 1. Forward Section Specifications

Item

Units

Value

 Optical Section

 Wavelength

nm

1100 - 1600

 Optical Input Power Range

dBm

-14 - +2

 Optical Return Loss

dB

45

 Optical Connector

-

SC / APC

FC / APC

 RF Section





 Frequency Range

MHz

47 - 1000

 Frequency Response

dB

± 1.5

 RF Output Level

dBmV

5 ( -1dBm Optical Input Power )

MER

dB

≥ 38 ( +1 - -6 dBm Optical Input Power )

≥ 30 ( -13 dBm Optical Input Power )

BER

dB

< 1.0E-9


Table 2. General Specifications

Item

Units

Value

 RF Connectors

-

F - female, Imperial

 RF Impedance

75

 Dimensions

mm

23 x 53 x 12

 Weight

g

10

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C).







Ordering information

Description

Part Number

  SQFR-1B1 Passive Optical Receiver, SC/ APC

     9934000013

SQFR-1B1 Passive Optical Receiver, FC/ APC

     9934000014
