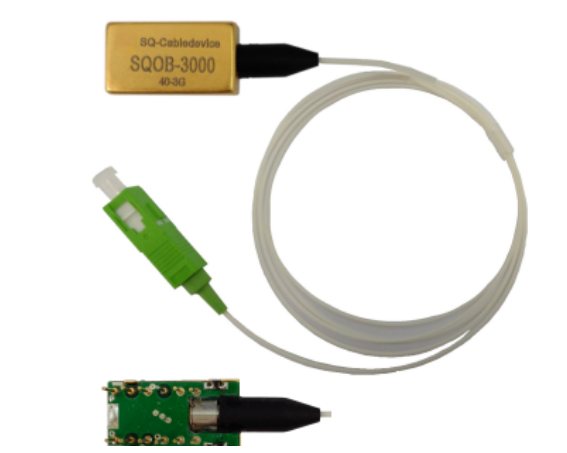

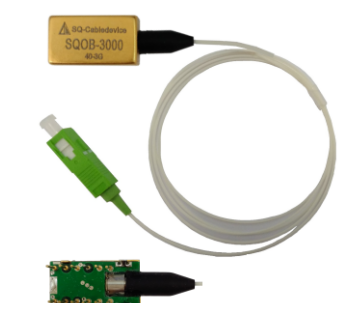

The SQOB-3000 Optical Receiver Block is a single-mode fiber pigtailed module featuring a low-noise, impedance-matched broadband photodiode and RF amplification.
The device receives optical analog and/or digital signals for a range of video broadcast options, and delivers the corresponding RF electrical output. The wide bandwidth supports the delivery of signals up to 3000 MHz.
The device exhibits excellent distortion performance with values well above standards over the entire bandwidth and case temperature specifications ( - 40 to +85 °C).
The device can be used in both 1310 nm and 1550 nm applications being useful at different points of a given network.
The SQOB-3000 is compliant with all criteria of the Restriction of the Use of Hazardous Substances in Electrical and Electronic Equipment (RoHS) guidelines 2002/95/EC.
Features
l 40 to 3000 MHz Bandwidth Supports Analog Channels or a Combination of Analog and Digital Channels.
l Excellent RF Frequency and Distortion Characteristics for High Linearity.
l RoHS Compliant
l Internal Proprietary Impedance Match Circuitry (50Ω)
l Robust Small Package with Single-Mode Fiber Pigtail and Connector Options
l Wide Operating Case Temp Range, - 40 to + 85°C
Specifications:
Table 1. Performance Highlights
Parameter | Limits |
Frequency Range | 40 - 3000 MHz |
Response Flatness | 2 dB pk-pk (typ) |
IP3 | 25 dBm (typ) |
Optical Input Power | Up to +8 dBm |
Wavelength | 1260 - 1620 nm |
Power Consumption | 0.4 W |
Table 2. Electrical/Optical Characteristics
Parameter | Unit | Min | Typ | Max | Symbol |
Optical Power | dBm | -- | -- | +8 | PIN |
Optical Return Loss | dB | 40 | -- | -- | RLOPT |
DC Power +5V Amp Bias, (Pin 2) +12V PD Bias, (Pin 3) |
mA mA |
-- -- |
-- -- |
80 3 |
ICCA ICCP |
Wavelength | nm | 1260 | 1310/1550 | 1620 | λ |
Responsivity | mA/mW mA/mW | -- -- | >0.80 at 1310 nm >0.90 at 1550 nm | -- -- |
-- |
PDI Monitor Voltage | V/mA | -- | 0.5 | -- | VMON |
Dissipation | W | -- | -- | 0.4 | PDISS |
Table 3. RF Characteristic
Parameter | Unit | Min | Typ | Max | Symbol |
Frequency Range | MHz | 40 | - | 3000 | BW |
Gain (Ref @ 40 MHz) | dB | 12 | - | 15 | G |
Gain Stability (- 40 to + 85°C) | dB | -0.75 | - | +0.75 | GST |
Ripple (47MHz - 3000 MHz) | dBpk - pk | - | 2 | 3 | - |
Tilt | dB | -1.6 | - | +1 | - |
RF Output Level 2 | dBmV / ch | - | +14 | - | RFOUT |
Output Return Loss (47 - 1000 MHz) (1000 - 3000 MHz) |
dB | - - | - - |
-14 -10 |
RL |
Equivalent Input Noise | pA/√Hz | - | - | 8 | EIN |
Output IP3 @1.8GHz | dBm | +22 | +25 | - | OIP3 |
Discrete Second-Order 1 | dBc | - | -53 | -45 | DSO |
Discrete Third Order 1,3 | dBc | - | -85 | -80 | DTO |
2. Optical Input = 0 dBm, 79ch analog, OMI = 3.5%
3. DTO may degrade to -77 dBc above 800 MHz
Handling Procedures
Please observe the following precautions to avoid damage:
Fiberglass optical coupling
Maximum tensile strength = 5 N. Minimum bending radius = 35 mm.
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper ESD control techniques should be used when handling these devices.
Absolute Maximum Ratings
Parameter | Unit | Rating |
Storage Temperature | °C | - 40 to +85 |
Operating Mounting Base Temperature | °C | - 30 to +85 |
Humidity at 85°C | % | 85 |
Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.

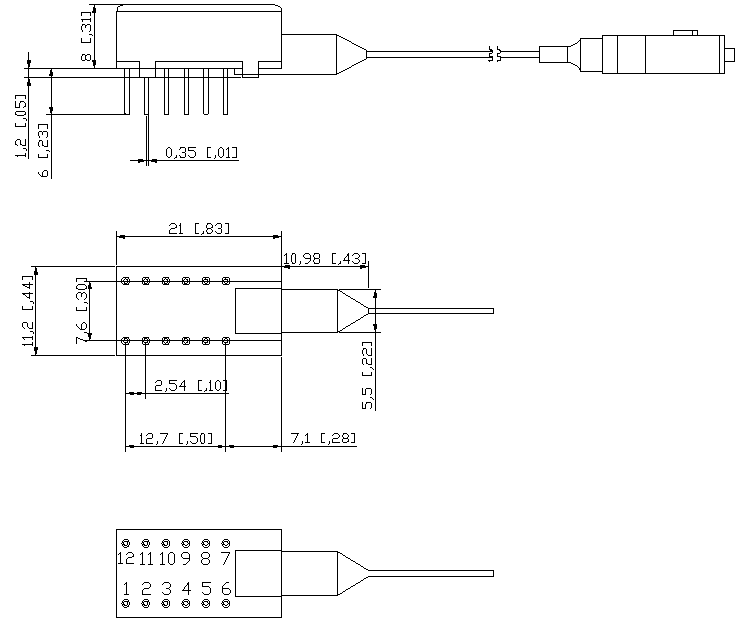

Package Drawing (Dimensions in millimeters)

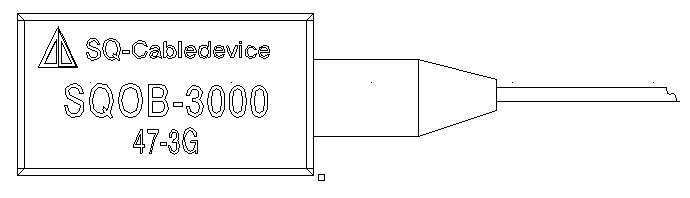

Top View
Bottom View
Pinning:
PIN | Description |
1 | GND |
2 | + 5V |
3 | + 12V |
4 | GND |
5 | GND |
6 | GND |
7 | GND |
8 | GND |
9 | PD MONITOR |
10 | GND |
11 | RF OUT |
12 | GND |
描 述 | 部件号 |
SQOB-3000 光接收模块,SC/APC光连接器 | 9945000005 |
SQOB-3000 光接收模块,FC/APC 光连接器 | 9945000006 |
