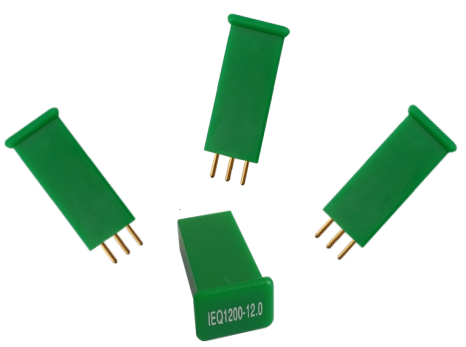

1.2GHz Forward Inverse Equalizers are cable simulators and produce a tilt that frequency response is equivalent of coaxial cable character. They are used as a forward input equalizer during station balancing when an amplifier is short spaced to achieve the desired flat input. The dB values and rated high frequency 1218 MHz are printed on the top of each equalizer.
It is JXP series and has two types of thickness. The thickness of A-type is 5.6 mm, and B-type is 4.0 mm.
These accessories can be used for amplifiers, coaxial cable units, etc.
Specifications
Item | Units | Value | ||||||||||||
EQ Values | dB | 1.5 | 3.0 | 4.5 | 6.0 | 7.5 | 9.0 | 10.5 | 12.0 | 13.5 | 15.0 | 16.5 | 18.0 | |
Tilt ( 52 to 1218 MHz ) | dB | 1.2 | 2.5 | 3.7 | 4.9 | 6.2 | 7.4 | 8.6 | 9.9 | 11.1 | 12.3 | 13.5 | 14.8 | |
Tilt ( 52 to 1000 MHz ) | dB | 1.1 | 2.1 | 3.2 | 4.3 | 5.4 | 6.4 | 7.5 | 8.6 | 9.6 | 10.7 | 11.8 | 12.8 | |
Tilt ( 52 to 870 MHz ) | dB | 1.0 | 1.9 | 2.9 | 3.9 | 4.8 | 5.8 | 6.8 | 7.7 | 8.7 | 9.7 | 10.6 | 11.6 | |
Frequency | MHz | 52 - 1218 | ||||||||||||
Tolerance EQ Val.max. | dB | ± 0.5 | ||||||||||||
Insertion Loss | dB | ≤1.0 | ||||||||||||
Flatness | dB | ± 0.2 | ± 0.25 | |||||||||||
Return Loss | Input | dB | 18.0 | 17.0 | ||||||||||
Output | dB | 18.0 | ||||||||||||
Impedance | Ω | 75 |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

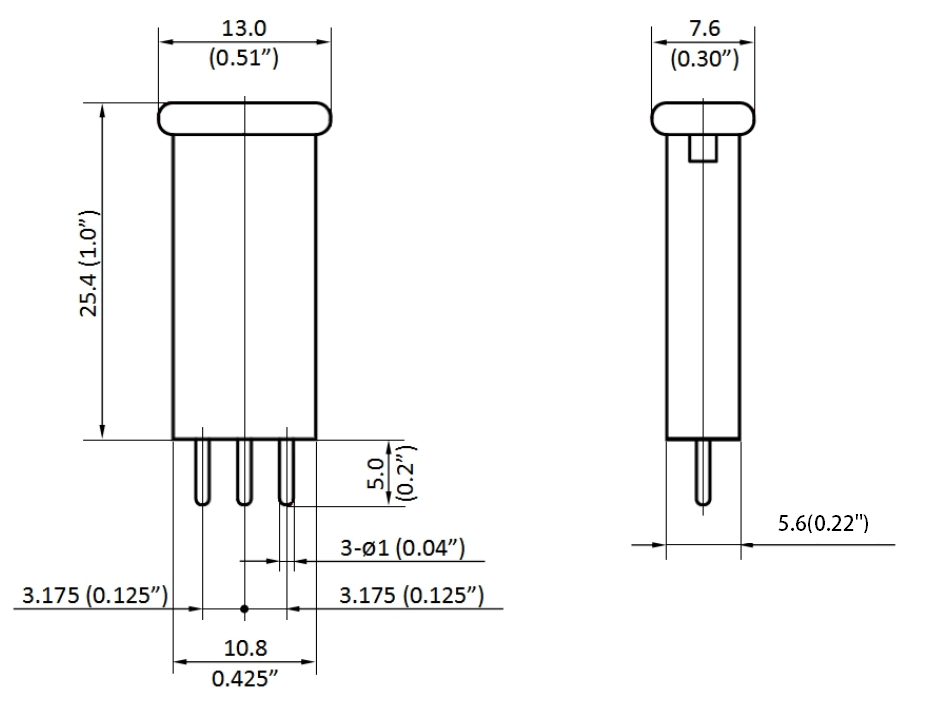

Dimensions
Type A Type B
Description |
Part Number |
|
Type A |
Type B |
|
1.2 GHz
JXP 1” Forward Inverse Equalizer 1.5dB, 1 inch, Green |
9907003001 |
9907003021 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 3.0dB, 1 inch, Green |
9907003002 |
9907003022 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 4.5dB, 1 inch, Green |
9907003003 |
9907003023 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 6.0dB, 1 inch, Green |
9907003004 |
9907003024 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 7.5dB, 1 inch, Green |
9907003005 |
9907003025 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 9.0dB, 1 inch, Green |
9907003006 |
9907003026 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 10.5dB, 1 inch, Green |
9907003007 |
9907003027 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 12.0dB, 1 inch, Green |
9907003008 |
9907003028 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 13.5dB, 1 inch, Green |
9907003009 |
9907003029 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 15.0dB, 1 inch, Green |
9907003010 |
9907003030 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 16.5dB, 1 inch, Green |
9907003011 |
9907003031 |
1.2 GHz
JXP 1” Forward Inverse Equalizer 18.0dB, 1 inch, Green |
9907003012 |
9907003032 |
