1.2GHz Forward Linear Equalizer

Query

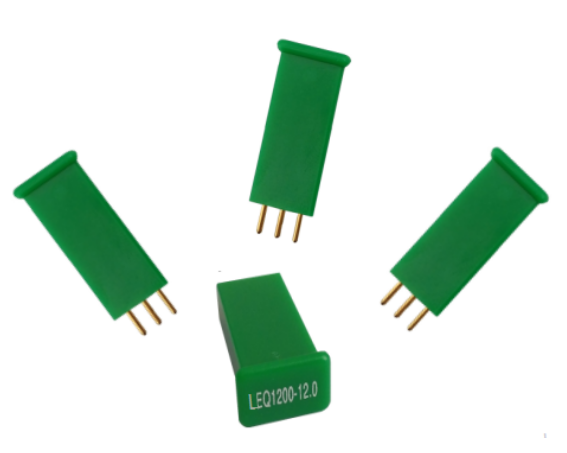

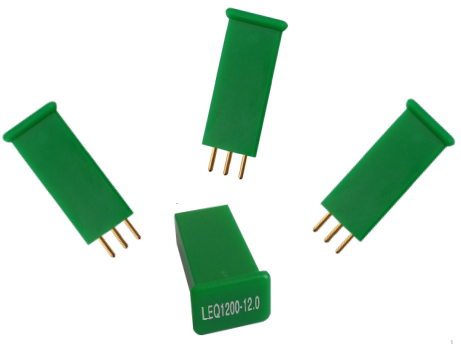

1.2GHz Forward Linear Equalizers produce a linear tilt that frequency response is opposite. They used in interstage equalizer location to achieve the desired station output tilt. The dB values and rated high frequency 1218 MHz are printed on the top of each equalizer.

It is JXP series and has two types of thickness. The thickness of A-type is 5.6 mm, and B-type is 4.0 mm.

These accessories can be used for node, cable TV units, etc.


Specifications

ItemUnitsValue
EQ ValuesdB1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Tilt ( 52 to 1218 MHz )dB1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 18.0
Tilt ( 52 to 1000 MHz )dB1.2 2.4 3.7 4.9 6.1 7.4 8.6 9.8 11.0 12.3 13.5 14.7
Tilt ( 52 to 870 MHz )dB1.1 2.1 3.2 4.2 5.3 6.4 7.4 8.5 9.5 10.6 11.6 12.7
FrequencyMHz52 - 1218
Tolerance EQ Val.max.dB± 0.5
Insertion LossdB1.0 1.21.3
FlatnessdB± 0.2± 0.25
Return LossdB18.0 17.0
ImpedanceΩ75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

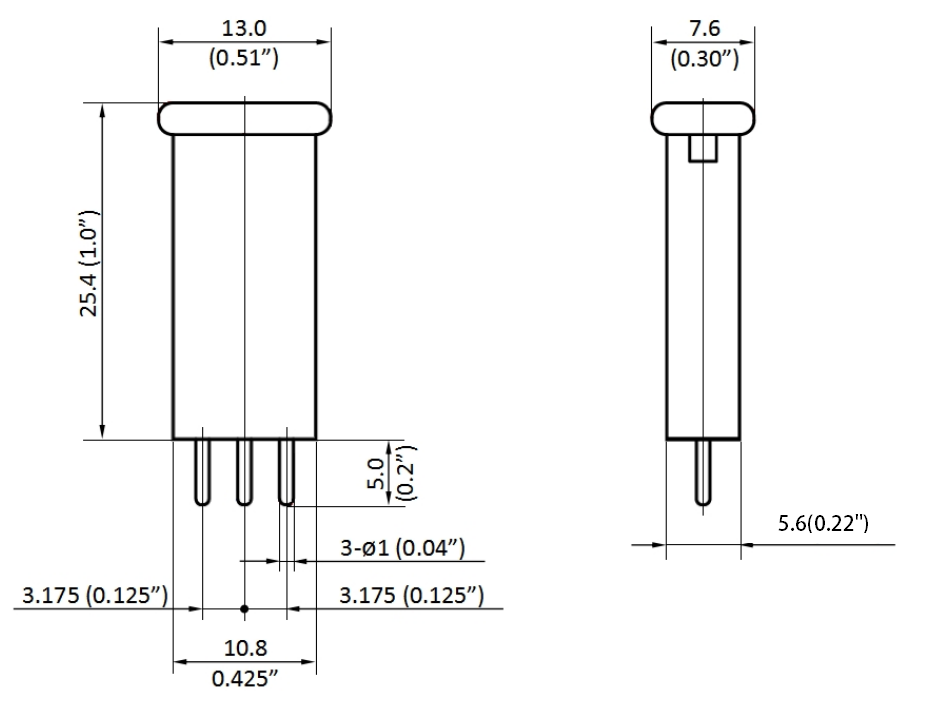

Dimensions

Type A                                                                                                             Type B





Ordering information

Description

Part Number

Type A

Type B

1.2 GHz JXP Forward Linear Equalizer 1.5dB, 1 inch, Green

9907000001

9907000031

1.2 GHz JXP Forward Linear Equalizer 3.0dB, 1 inch, Green

9907000002

9907000032

1.2 GHz JXP Forward Linear Equalizer 4.5dB, 1 inch, Green

9907000003

9907000033

1.2 GHz JXP Forward Linear Equalizer 6.0dB, 1 inch, Green

9907000004

9907000034

1.2 GHz JXP Forward Linear Equalizer 7.5dB, 1 inch, Green

9907000005

9907000035

1.2 GHz JXP Forward Linear Equalizer 9.0dB, 1 inch, Green

9907000006

9907000036

1.2 GHz JXP Forward Linear Equalizer 10.5dB, 1 inch, Green

9907000007

9907000037

1.2 GHz JXP Forward Linear Equalizer 12.0dB, 1 inch, Green

9907000008

9907000038

1.2 GHz JXP Forward Linear Equalizer 13.5dB, 1 inch, Green

9907000009

9907000039

1.2 GHz JXP Forward Linear Equalizer 15.0dB, 1 inch, Green

9907000010

9907000040

1.2 GHz JXP Forward Linear Equalizer 16.5dB, 1 inch, Green

9907000011

9907000041

1.2 GHz JXP Forward Linear Equalizer 18.0dB, 1 inch, Green

9907000012

9907000042
