5-1200MHz Forward Linear Equalizer

Query

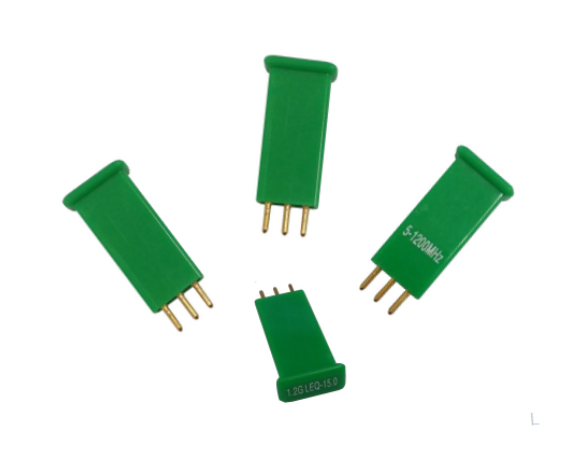

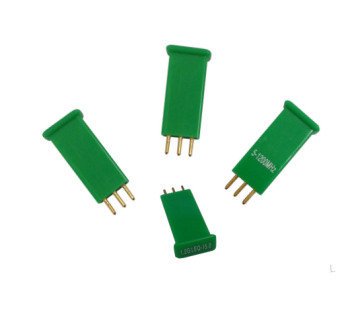

5-1200 MHz Forward Linear Equalizers produce a linear tilt that frequency response is opposite. They used in interstage equalizer location to achieve the desired station output tilt. The dB values and rated frequency are printed on the top and side of each equalizer.

These accessories can be used for node, cable TV units, etc.


Specifications

Item

Units

Value

EQ Values

dB

0

1.5

3.0

4.5

6.0

7.5

9.0

10.5

12.0

13.5

15.0

16.5

18.0

Tilt ( 5 to 1218 MHz )

dB

0

1.5

3.0

4.5

6.0

7.5

9.0

10.5

12.0

13.5

15.0

16.5

18.0

Tilt ( 5 to 1000 MHz )

dB

0

1.3

2.5

3.8

5.0

6.3

7.5

8.8

10.0

11.3

12.5

13.8

15.0

Tilt ( 5 to 870 MHz )

dB

0

1.1

2.2

3.3

4.4

5.4

6.5

7.6

8.7

9.8

10.9

12.0

13.0

Frequency

MHz

5 - 1218

Tolerance EQ Val.max.

dB

± 0.5

Insertion Loss

dB

1.0

1.2

1.3

Flatness

dB

± 0.2

± 0.25

Return Loss

dB

18.0

17.0

Impedance

Ω

75

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

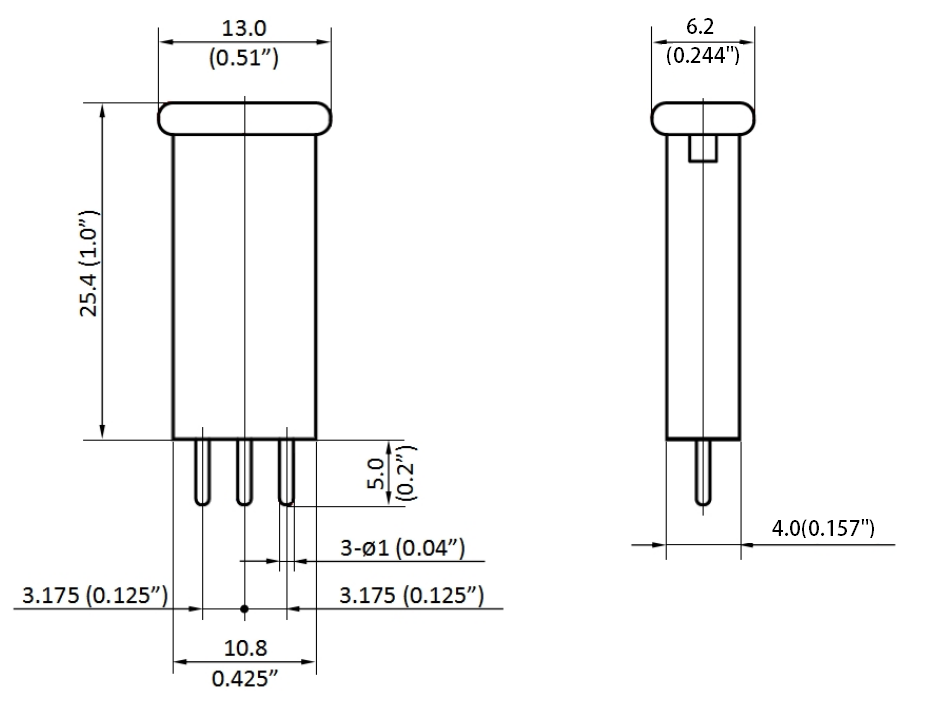

Dimensions

Type B





Ordering information

Description

Part Number

Type B

5-1200 MHz JXP Forward Linear Equalizer 1.5dB, 1 inch, Green

9907003121

5-1200 MHz JXP Forward Linear Equalizer 3.0dB, 1 inch, Green

9907003122

5-1200 MHz JXP Forward Linear Equalizer 4.5dB, 1 inch, Green

9907003123

5-1200 MHz JXP Forward Linear Equalizer 6.0dB, 1 inch, Green

9907003124

5-1200 MHz JXP Forward Linear Equalizer 7.5dB, 1 inch, Green

9907003125

5-1200 MHz JXP Forward Linear Equalizer 9.0dB, 1 inch, Green

9907003126

5-1200 MHz JXP Forward Linear Equalizer 10.5dB, 1 inch, Green

9907003127

5-1200 MHz JXP Forward Linear Equalizer 12.0dB, 1 inch, Green

9907003128

5-1200 MHz JXP Forward Linear Equalizer 13.5dB, 1 inch, Green

9907003129

5-1200 MHz JXP Forward Linear Equalizer 15.0dB, 1 inch, Green

9907003130

5-1200 MHz JXP Forward Linear Equalizer 16.5dB, 1 inch, Green

9907003131

5-1200 MHz JXP Forward Linear Equalizer 18.0dB, 1 inch, Green

9907003132
