SQOA 1550nm High Power Optical Amplifier

Query

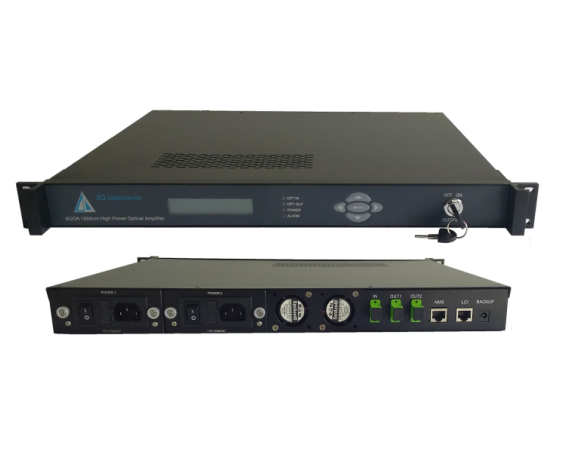

SQOA is a high power optical amplifier with gain spectrum band within 1540 to 1565nm. It is mainly designed for the application of CATV or 1 to 31 continuous banding channels (ITU wavelength). It offers a highly reliable, flexible and low-cost solution for CATV large area coverage of metropolises and medium sized cities, that are high density home pass, especially for FTTH application.

SQOA adopts the world's top class pump laser and erbium ytterbium co-doped double-clad fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation.

SQOA offers LCD & LED at the front panel with all work index of the equipment and warning alarms. The pump will be switched off automatically if optical power is missing, which offers security protection for the laser. RS-485 abd Ethernet ports offer local LCI and remote SNMP network management.

SQOA can be set to master or slave for redundancy architecture.





Features

High output power, E-Y co-doped

Hot backup, auto redundancy

Support ITU channels banding

Low optical input power

Adjustable output optical power -3dB

Perfect APC, ACC and ATC control

Excellent ventilation and heat-dissipation.

Low noise, high quality

Double power supply, load sharing and redundant protection

Ultra low power consumption

19 inch, 1RU box, compact size


Specifications

Item

Units

Value

Wavelength Range

nm

1540 - 1565

Spectral Flatness

dB

± 0.5

Optical Input Power 1)

dBm

- 10 - + 10

Optical Output Power

dBm

14, … , 32 @ 1 port  (1dBm step)

33, … , 37 @ 2 ports  (1dBm step)

Optical Power Stability

dB

± 0.2

Optical Power Adjustable Range

dB

- 3  (0.5dB step)

Noise Figure 2)

dB

Max. 5.5

Pump Leakage Power

dBm

- 30

Optical Connector

-

SC / APC

Optical Return Loss

dB

50

Power Supply

VAC

115 - 230

Power Consumption

W

60

Power Cord

-

Optional

Dimensions (W x H x D)

mm

483 x 45 x 388

Weight

kg

3.4

Operating Temperature

°C

0 - 55

Storage Temperature

°C

- 20 - 70

 Note:

1) Nominal optical input power is +3dBm.

2) The test is at +3dBm optical input power and 1550nm wavelength.

3) Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.




Ordering information

Description

Part Number

SQOA 1550nm High Power Optical Amplifier, 14dBm, Europe power cord

9915000001

SQOA 1550nm High Power Optical Amplifier, 15dBm, Europe power cord

9915000002

SQOA 1550nm High Power Optical Amplifier, 16dBm, Europe power cord

9915000003

SQOA 1550nm High Power Optical Amplifier, 17dBm, Europe power cord

9915000004

SQOA 1550nm High Power Optical Amplifier, 18dBm, Europe power cord

9915000005

SQOA 1550nm High Power Optical Amplifier, 19dBm, Europe power cord

9915000006

SQOA 1550nm High Power Optical Amplifier, 20dBm, Europe power cord

9915000007

SQOA 1550nm High Power Optical Amplifier, 21dBm, Europe power cord

9915000008

SQOA 1550nm High Power Optical Amplifier, 22dBm, Europe power cord

9915000009

SQOA 1550nm High Power Optical Amplifier, 23dBm, Europe power cord

9915000010

SQOA 1550nm High Power Optical Amplifier, 24dBm, Europe power cord

9915000011

SQOA 1550nm High Power Optical Amplifier, 25dBm, Europe power cord

9915000012

SQOA 1550nm High Power Optical Amplifier, 26dBm, Europe power cord

9915000013

SQOA 1550nm High Power Optical Amplifier, 27dBm, Europe power cord

9915000014

SQOA 1550nm High Power Optical Amplifier, 28dBm, Europe power cord

9915000015

SQOA 1550nm High Power Optical Amplifier, 29dBm, Europe power cord

9915000016

SQOA 1550nm High Power Optical Amplifier, 30dBm, Europe power cord

9915000017

SQOA 1550nm High Power Optical Amplifier, 31dBm, Europe power cord

9915000018

SQOA 1550nm High Power Optical Amplifier, 32dBm, Europe power cord

9915000019

SQOA 1550nm High Power Optical Amplifier, 33dBm, Europe power cord

9915000020

SQOA 1550nm High Power Optical Amplifier, 34dBm, Europe power cord

9915000021

SQOA 1550nm High Power Optical Amplifier, 35dBm, Europe power cord

9915000022

SQOA 1550nm High Power Optical Amplifier, 36dBm, Europe power cord

9915000023

SQOA 1550nm High Power Optical Amplifier, 37dBm, Europe power cord

9915000024
