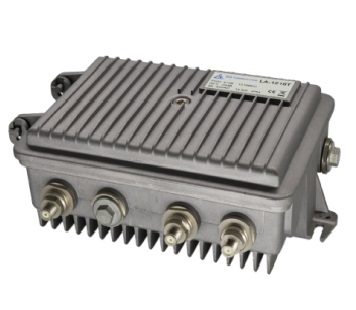

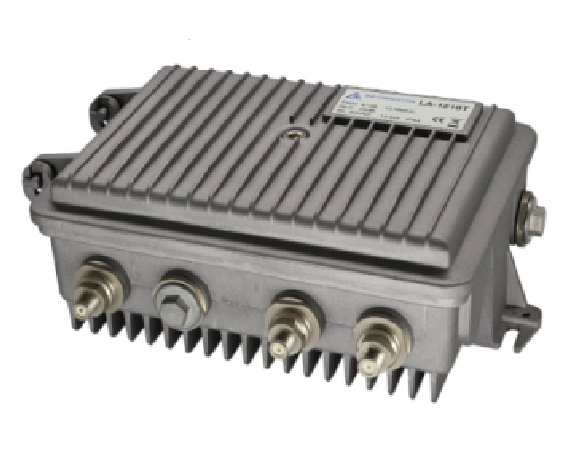

LA - 1218T 1.2GHz Amplifier

Query


LA-1218T RF Amplifier is a 1.2 GHz bandwidth two-way amplifier. It provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout.

GaAs technology is used, that guarantees the excellent CTB and CSO performance. Both output level and slope can be adjusted using standard JXP PADs to minimize the spares.

The frequency split can be changed in the field for system upgrading easily.


Features

Supports 1.2 GHz bandwidth

On site changing frequency split

Compact design, small and exquisite

GaAs technology in use

Improved ESD and Surge protection

Low noise figure

Standard JXP plug-in PADs for all adjustments of attenuation and equalization

Second output can be selected via splitter or tap


Specifications

Table 1. Forward Path Specifications

Item

Units

Value

Pass Band

MHz

85/105/258 - 1218

Gain

dB

41

Frequency Response

dB

± 0.75

Reference Output Level

dBuV

108

Attenuator Adjustable Range

dB

0 - 20, 1 dB step

Equalizer Adjustable Range

dB

0 - 20, 1 dB step

Return Loss

dB

16 @ 85 - 1000 MHz

14 @ 1001 - 1218 MHz

RF Test Point

dB

- 20

Noise Figure

dB

6 (1 GHz), 6.5 (1 GHz)

CTB @ CENELEC 42 CH

dB

60

CSO @ CENELEC 42 CH

dB

60

Hum Modulation @ 5 A

dB

70

MER

dB

41

BER

-

1 x 10-8

Group Delay (in 1 MHz bandwidth)

ns

20



Table 2. Return Path Specifications

Item

Units

Value

Pass Band

MHz

5 - 65/85/204

Gain

dB

25

Frequency Response

dB

± 0.75

Return Loss

dB

18

RF Test Point

dB

- 20

Noise Figure

dB

4.5 ( 10 MHz)

RF Input Dynamic Range

@ MER 41 dB & BER 1 x 10-8

dB

25

Group Delay (in 1 MHz bandwidth)

ns

20



Table 3. General Specifications

Item

Units

Value

Power Consumption (High Gain / Low Gain)

W

14.5

Supply Voltage

V AC

26 - 65

RF Connectors

-

F - female, Imperial

Dimensions ( W x H x D)

mm

230 x 164 x 84

Weight

kg

1.5

Water/Dust Ingress Protection Rating

-

IP 54

Operating Temperature

°C

- 40 - + 55

Storage Temperature

°C

- 40 - + 80

Relative Humidity Range

-

5% - 95%

EMC Compatibility

-

EN 60728-2

Safety

-

EN 60728-11

ESD / Surge



4 kV / 6 kV, IEC 60728-3

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.


Description

Part Number

 LA - 1218T RF Amplifier, 1.2G, 65/85M

9920000021

 LA - 1218T RF Amplifier, 1.2G, 85/105M

9920000022

 LA - 1218T RF Amplifier, 1.2G, 204/258M

9920000023
