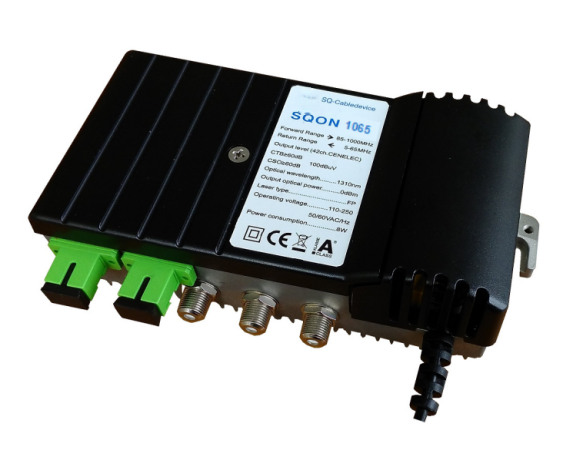

SQON 1065 Optical Node is a 1 GHz compact size node specially designed to meet fiber-deep architecture. This node provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout.
Features
l Supports 1 GHz downstream
l GaAs technology in use
l LED indicators for optical input, output and power
l AGC optical input range of - 6 to + 2 dBm
l 100 dBµV RF output level, other RF output level optional
l Step Attenuators are used to adjust gain and interstage slope
l External RF test points for forward and reverse path
l Low power consumption
Specifications
Table 1. Forward Section Specifications
Item | Units | SQON 1065 - 1 | SQON 1065 - 2 |
Optical Section | |||
Wavelength | nm | 1290 - 1600 | |
Optical Input Power Range | dBm | - 6 - + 2 | |
Optical AGC Range | dBm | - 6 - + 2 | |
Optical Return Loss | dB | 45 | |
Optical Connector | - | SC / APC | |
RF Section | |||
Frequency Range | MHz | 85 - 1000 | |
Frequency Response | dB | ± 0.75 | |
Attenuator Adjustable Range | dB | 0 - 10, 2 dB step | |
Equalizer Adjustable Range | dB | 0 - 10, 2 dB step | |
RF Output Level1 | dBµV | 103 | 100 |
Return Loss | dB | 18 @ 85 MHz decreasing with - 1.5 dB/octave. | |
RF Output Test Point (±0.75) | dB | - 20 | |
Link Section | |||
C/N2 | dB | 50 | |
Distortion @ 59 PAL D/K + Digitial2 CTB CSO | dB dB | 60 60 |
Note: 1. RF output level with 0dB RF attenuator, -6 to +2 dBm optical input power, 4% OMI.
2. Distortion performance reference output level is 103 dBµV (SQON 1065 - 1) or 100 dBµV (SQON 1065 - 2)( 0 dB slope, - 3 dBm optical input power, 4% OMI). Loaded with 59 PAL D/K CW carriers from 47-550 MHz.Digital refers to 550 MHz to 1 GHz loading with QAM carriers at -10 dB relative to analog CW carrier levels.
Table 2. Reverse Section Specifications
Item | Units | Value |
Laser Type | - | FP |
Wavelength | nm | 1310 ± 20 |
Output Power | dBm | 0 |
Optical Return Loss | dB | 45 |
Optical Connector | - | SC / APC |
Frequency Range | MHz | 5 - 65 |
Frequency Response | dB | ± 0.5 |
Attenuator Adjustable Range | dB | 0 - 10, 2 dB step |
RF Input Level | dBµV | 75 - 95 |
Return Loss | dB | 16 |
RF Test Point ( ± 0.75 ) | dB | - 20 |
Table 3. General Specifications
Item | Units | SQON 1065 - 1 | SQON 1065 - 2 |
Power Consumption | W | 9.5 | 8.0 |
Supply Voltage | V AC | 110 - 250 | |
RF Connectors | - | F - female, Imperial | |
RF Impedance | Ω | 75 | |
Dimensions (W x H x D) | mm | 174 x 84 x 53 | |
Weight | kg | 0.7 | |
Operating Temperature | °C | -10 - +50 |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Ordering information
The product is available in a wide variety of split, forward wavelength, reverse transmitter’s type and output power, optical connector type. Consult your Customer Service Representative or Applications Engineer to determine the best choose for your particular application.
Description |
SQON 1065 - 1 Optical Node |
SQON 1065 - 2 Optical Node |
