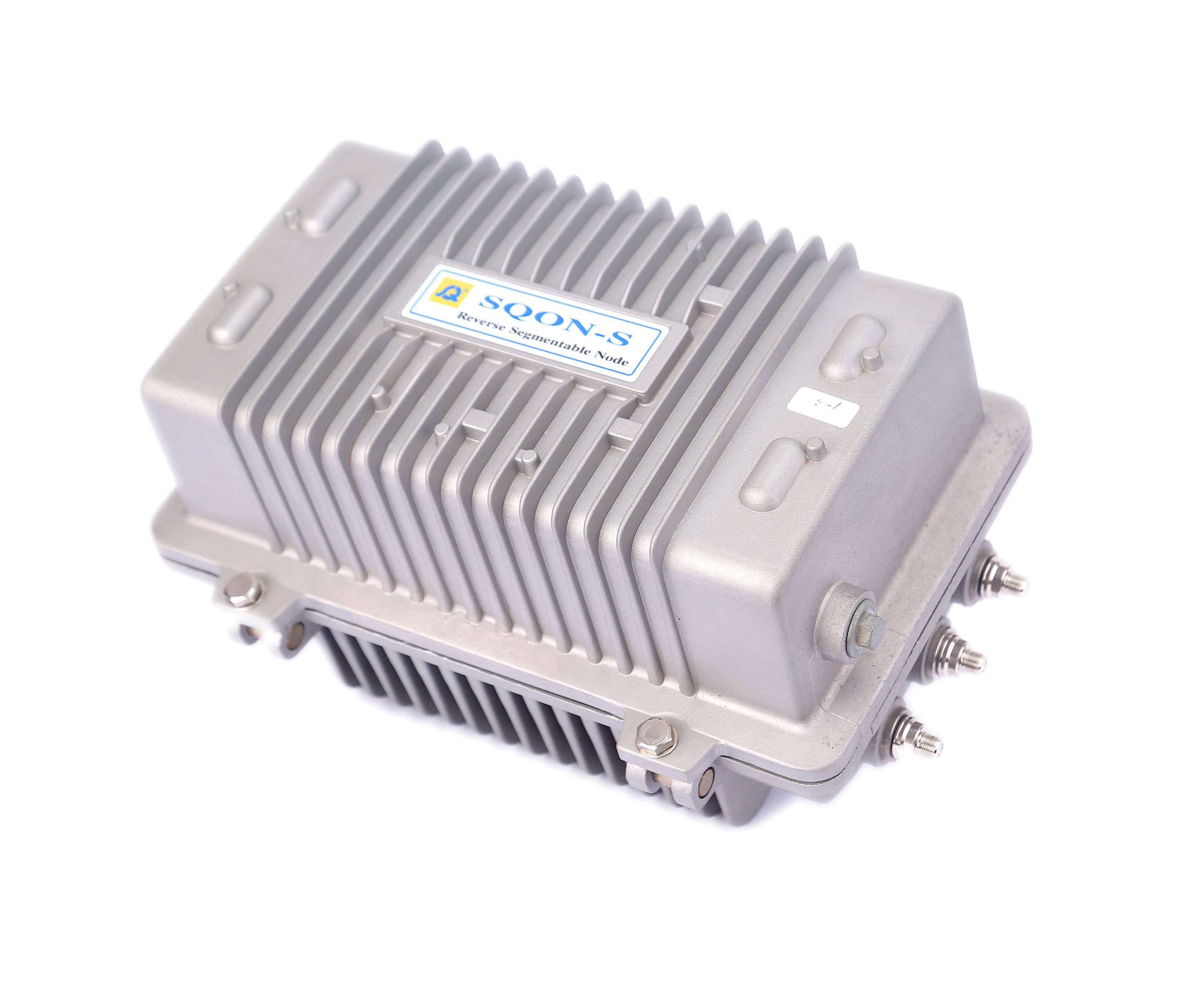

SQON - S Reverse Segmentable Node is a economic platform with high performance, 4 passive output ports, and compact size optoelectronic nodes with bandwidth up to 1000MHz.
It is capable of providing 50dBmV output level with 4 ports at 1000MHz. Modular design enables the Multiple Service Operators to choose the minimal configuration as the present requirement and expand when need in the future. The SQON - S is able to accommodate 2 forward receiver modules and 2 return path transmitters, with redundancy functionality. The SQON - S can be upgraded to different frequency by change some plug-in modules.
The goal for the product is to provide system designer an economical and robust node in CATV optical network.
Features
l 1000 MHz bandwidth
l 50 dBmV high level 4 port output
l JXP PAD for RF level attenuation
l 15 A power current passing capability
l Band diplexer selection for 42/54, 65/85, 85/105 and 204/258
l HP/LP is plug-in type
l The bandwidth of Return path Transmitter is 5 to 220 MHz
l Linear equalizer using JXP PAD for slope adjustment
l Wide operation temperature range - 40 to + 60 ˚C
l With optical power TP and LED display for receiver and transmitter module
l With capability of field upgrade operation for redundant 2 pcs of forward receiver and 2 pcs of return transmitters
l Wide optical input operation AGC range, - 6 dBm to + 2 dBm
l 15 MHz HP
Specifications
Table 1. Forward Section Specifications
Item | Units | Value |
Optical Section | ||
Wavelength | nm | 1310 - 1550 |
Optical Input Power Range | dBm | - 8 - + 2 |
Optical AGC Range | dBm | - 6 - + 2 |
Optical Return Loss | dB | 45 |
Optical Connector | - | SC / APC |
RF Section | ||
Frequency Range | MHz | 54 / 85 / 105 / 258 - 1000 |
Frequency Response | dB | ± 0.75 |
RF tilt | dB | 14 @ 54 / 85 / 105, 10 @ 258 |
RF Output Level | dBmV | 50 |
Return Loss | dB | 16 |
RF Test Point (± 1.0) | dB | - 20 |
RF Level control | dB | 0 - 20, 1 dB step |
Slope control | dB | 7 - 21 (with inner 7 dB), 1 dB step |
Link Section | ||
C/N* | dB | 51 |
Distortion* CTB CSO XMOD | dB | 67 63 62 |
* Distortion performance reference output level is 50 dBmV ( 0 dBm optical input power, 3% OMI, 20 km fiber). Loaded with 79 NTSC CW carriers. Digital refers to 550 MHz to 1 GHz loading with 75 QAM carriers at -10 dB relative to analog CW carrier levels.
Table 2. Reverse Section Specifications
Item | Units | Value |
Optical Section | ||
Laser Type | - | DFB |
Wavelength | nm | 1310, 1550, CWDM, DWDM |
Output Power | dBm | 3 |
Optical Return Loss | dB | 45 |
Optical Connector | - | SC / APC |
RF Section | ||
RF Input Level | dBmV | 15 - 25 |
Frequency Range | MHz | 5 - 42 / 65 / 85 / 220 |
Frequency Response | dB | ± 0.75 |
Return Loss | dB | 16 |
RF Test Point (± 1.0) | dB | - 20 |
NPR Dynamic Range | dB | 20 @ 30 dB NPR |
Wink Switch | dB | 0, 6, 40 |
Item | Units | Value |
RFoG Performance (Only for Node w/ Burst Mode RTX) | ||
RF trigger level on (add 7dB more attenuation on RTX for segmented configuration) | dBmV | 10 ± 1 |
RF trigger level off (add 7dB more attenuation on RTX for segmented configuration) | dBmV | 5 ± 2 |
Burst on delay time | us | < 1.5 |
Burst off delay time | us | < 4 |
Table 3. General Specifications
Item | Units | Value |
Supply Voltage | VAC | 40 - 130 |
Power consumption | W | 45 (Full configuration) |
Max. AC Through Current | A | 15 |
RF Connectors | - | F - female, Imperial |
RF Impedance | Ω | 75 |
Operating temperature | ˚C | - 40 - + 60 |
Humidity | % | 95 %,non-condensing |
Water and Dust resistance | - | IP 68 |
Dimensions (W x H x D) | mm | 229 x 155 x 305 |
Weight | kg | 5 (Full configuration) |
Surge | R | IEEE C62.41, 1.2/50us Combination Wave, 6kV |
Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.
Block Diagram

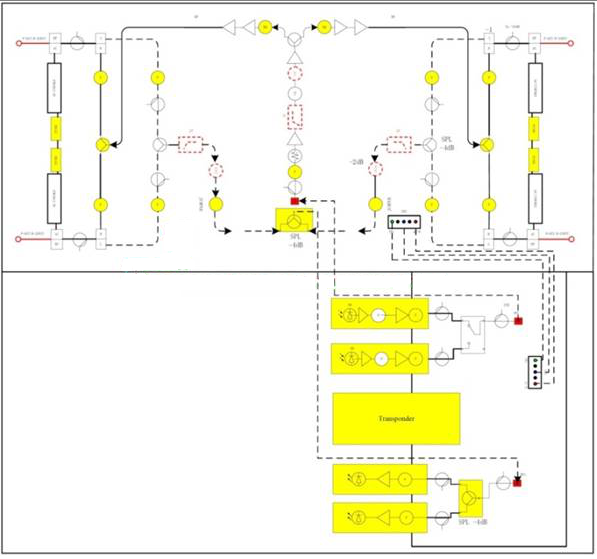

Configuration I: Standard

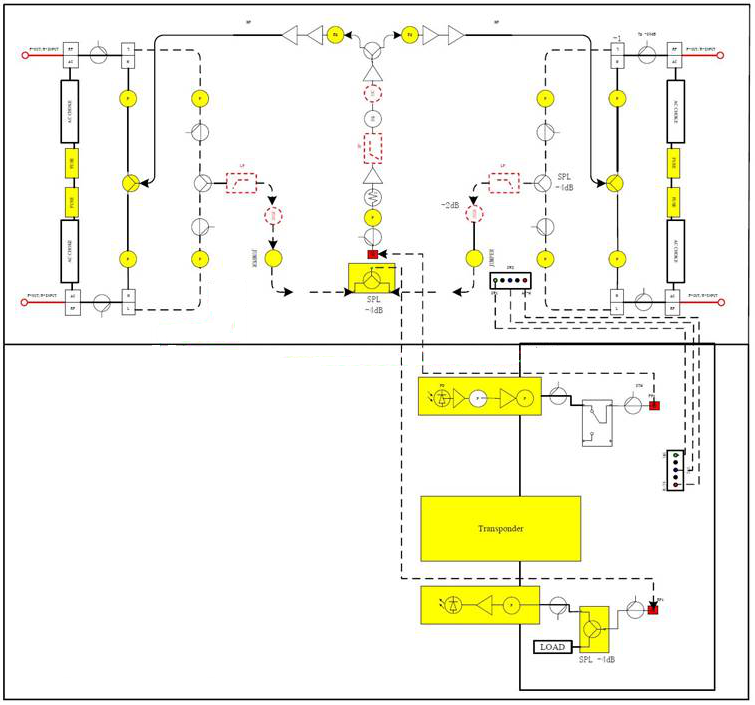

Configuration II: Forward Path: Redundant
Return Path: Redundant

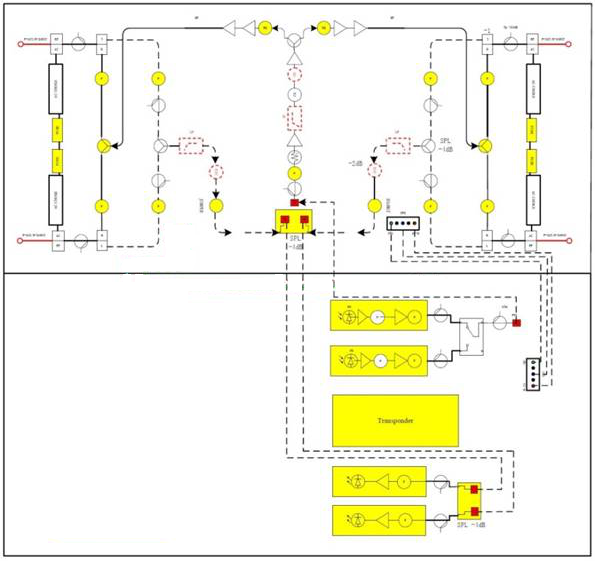

Configuration III: Forward Path: Redundant
Return Path: Segmented
Ordering information
The product is available in a wide variety of split, forward wavelength, reverse transmitter’s type, output power,quantity, optical connector type,. Consult your Customer Service Representative or Applications Engineer to determine the best choose for your particular application.
Description |
SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC, Standard with 1 Rx and 1 Tx |
SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC, Redundant with 2 Rx and 2 Tx |
SQON - S Reverse Segmentable Node, 1GHz, 65/86, SC/APC, Redundant with 2 Rx, Segmented with 2 Tx |
