M107H 1310 nm Optical Transmitter

Query

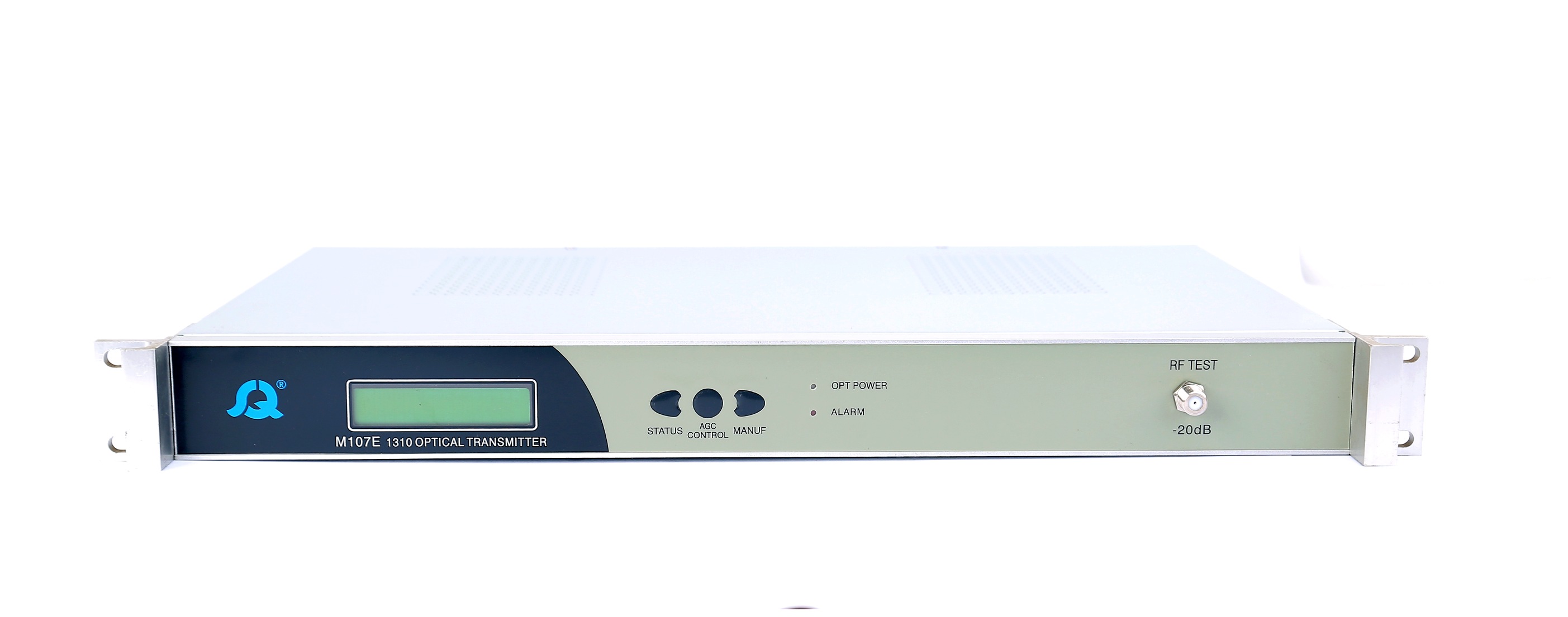

The M107H 1310 nm Optical Transmitter is an exceptionally cost-effective high-performance 1.2 GHz 1310 nm optical transmitter. It is designed for HFC forward path deployments. It is a standard 19”1RU that can be monitored ensuring convenient status monitoring and system management.


Features

l   47 - 1218 MHz RF passband to increase bandwidth capacity for new services

l   Low noise, low distortion, excellent frequency response and pre-AMP to meet low RF input signal

l  Using SMD low power RF amplifier chip and the latest broadband linear amplifier technology that have best performance of CSO and CTB

l  Display for operating state and data

l  RF input test port

l  LED Alarm for low optical power output

l   Advanced high efficiency switched power supply to meet the AC voltage wide rang (110V-240V)


Specifications

Table 1. Specifications

Item

Unit

Value

Type of laser

-

DFB

Wavelength

nm

1310 ± 20

Modulation mode

-

Direct Light Intensity Modulation

Output Optical Power

mW

4, 6, 8, 10, 13, 16, 18, 20

Fiber Connector

-

SC/APC, FC/APC, LC/APC, E2000/APC

Frequency Range

MHz

47 - 1218

Input RF Signal Level

dBµV

72 - 82

AGC range

dB

0 - 10

CNR

dB

≥ 52note

CTB

dB

≥ 65note

CSO

dB

≥ 63note

Flatness

dB

± 0.5

RF Input Impedance

Ω

75

RF Input Return Loss

dB

≥ 16 @ 47 - 1218 MHz

  Notes: Distortion test condition with 10km fiber plus adjustable optical attenuator and -1dBm optical receiver input power.



Table 2. General Specifications

Item

Units

Value

Power Consumption

W

≤ 12

Supply Voltage (with Filter)

V AC

220 (110-240)

RF Connectors

-

F - female, Imperial

Dimensions ( W x H x D)

mm

483 x 44 x 457

Weight

kg

4

Operating Temperature

°C

- 10 - + 55

Storage Temperature

°C

- 25 - + 55

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.


Ordering information

Description

Part Number

M107H 1.2 GHz 1310nm Transmitter, 4mW, SC/APC

9911000000

M107H 1.2 GHz 1310nm Transmitter, 6mW, SC/APC

9911000001

M107H 1.2 GHz 1310nm Transmitter, 8mW, SC/APC

9911000002

M107H 1.2 GHz 1310nm Transmitter, 10mW, SC/APC

9911000003

M107H 1.2 GHz 1310nm Transmitter, 13mW, SC/APC

9911000004

M107H 1.2 GHz 1310nm Transmitter, 16mW, SC/APC

9911000005

M107H 1.2 GHz 1310nm Transmitter, 18mW, SC/APC

9911000006

M107H 1.2 GHz 1310nm Transmitter, 20mW, SC/APC

9911000007
