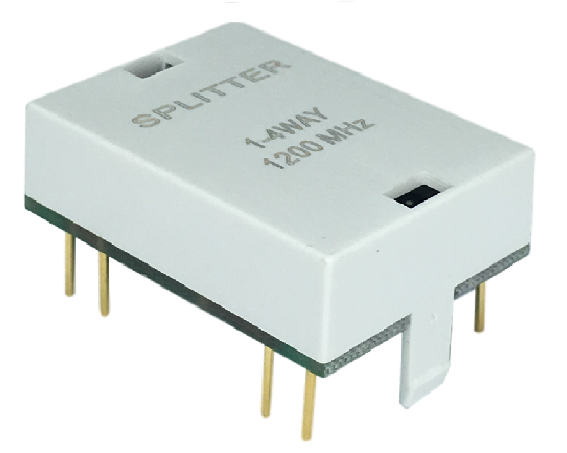

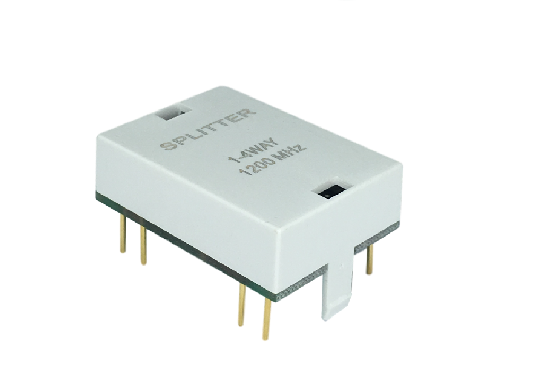

1.2 GHz 1- 4 Splitter

Query


1.2 GHz 1-4 Splitter is used as a splitter to feed the signal into 4 output ports.

These accessories can be used for nodes, amplifiers, line extenders, etc.


Specifications

Item

Units

Spec

Frequency Range

MHz

10

150

300

450

750

860

1000

1200

Insertion Loss

dB

6.6

6.9

7.2

7.3

7.3

7.4

7.5

8.0

Flatness

dB

± 0.5

Isolation

dB

≥20

Input Return Loss

dB

≥18

Output Return Loss

dB

≥16

Impedance

Ω

75

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

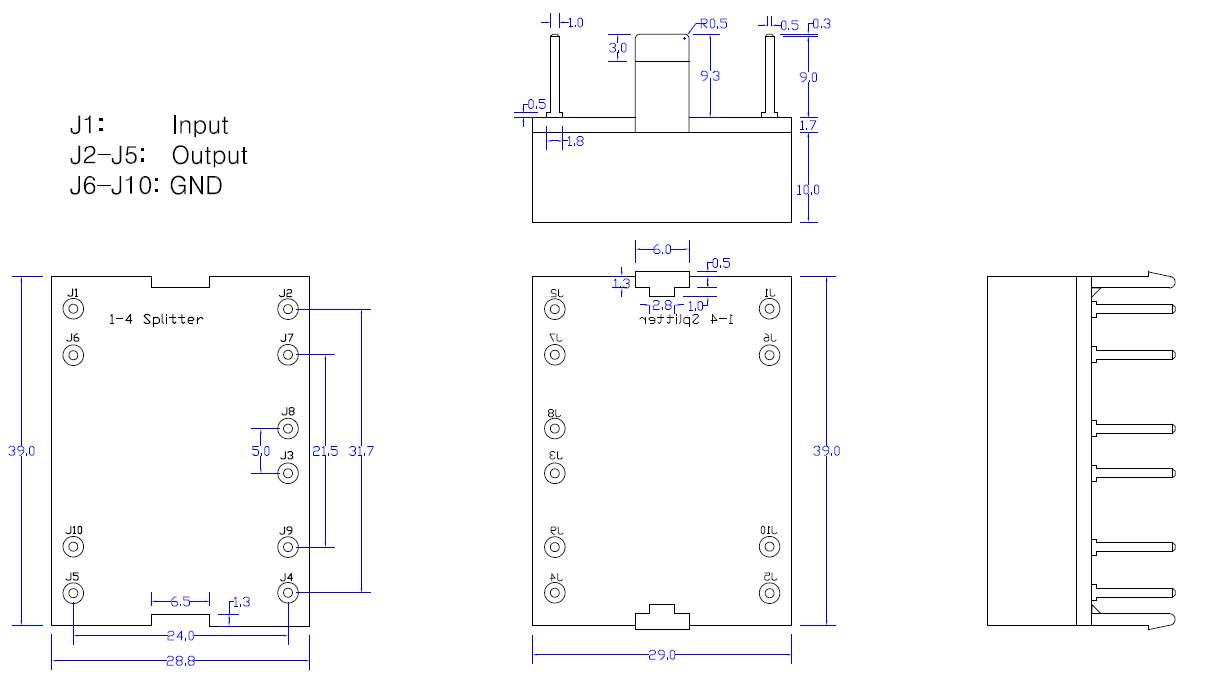

Dimensions




Description

Part Number

 1.2 GHz 5-1200MHz 1-4 Splitter-717921

9910000006
