1.8GHz SJ-5B

Query

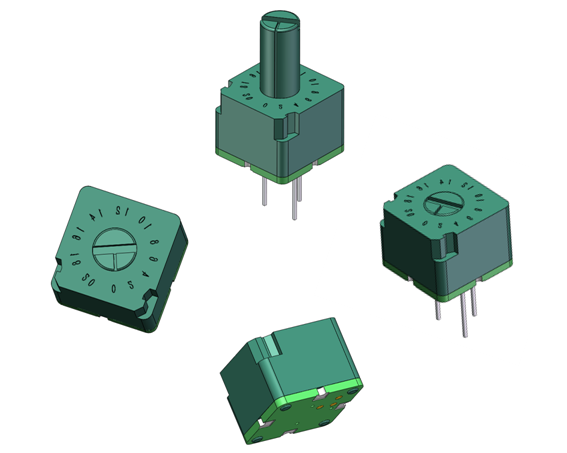

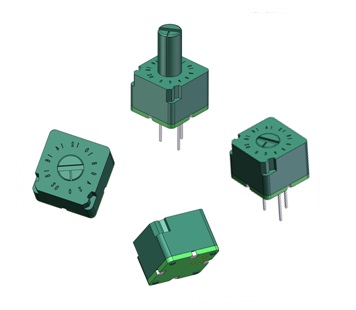

1.8 GHz SJ-5B/5BS Variable Step Attenuators produce linear loss through the full CATV forward and reverse frequency band. The attenuators are used to balance and adjust amplifier signal levels as needed. The variable step loss produced (dB) is between 0 to 5, 10, 15, 20 dB based on the steps (11 step). The attenuators are designed for circuits up to 1.8 GHz. The attenuators can also be used as equalizers.

Reel packaging is also available for easy SMT assembly (SJ-5BS).


Specifications

Item

Units

Value

 Attenuation Values

dB

0 - 5

0 - 10

0 - 15

0 - 20

 Step Values

dB

0.5

1.0

1.5

2.0

 Frequency Range

MHz

5 - 1800

 Insertion Loss

dB

≤ 0.5

 Flatness

dB

± 0.3

 Return Loss

dB

≥ 18.0 @ 5-1200MHz

≥ 16.0 @ 1201-1800MHz

Impedance

Ω

75

  Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C). Specifications are based upon measurements made in accordance with SCTE/ANSI standards (where applicable), using standard frequency assignments.

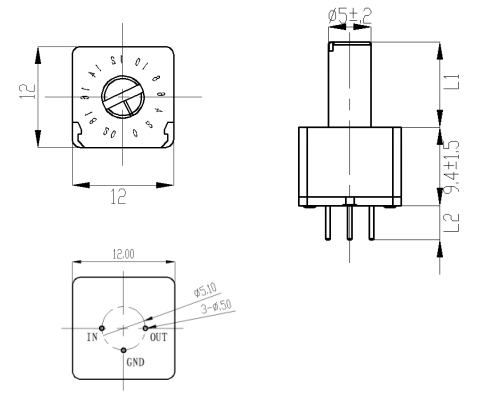

Dimensions

 SJ-5B



Size

Shaft diameter Ф (mm)

Shaft length L1 (mm)

Pin length L2 (mm)

5

0 and 10

10


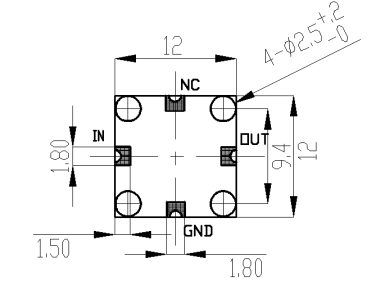

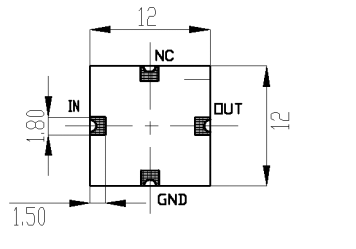

SJ-5BS SMD Footprint


Size

Shaft diameter Ф (mm)

Shaft length L1 (mm)

5

0


PCB Requirement for SJ-5BS

4 holds are required on the corresponding PCB









Ordering Information

Bulk Package Type:

Description

Part Number

 SJ-5B-0.5dB Step, Value 0 - 5 dB, 0mm knob

9903000260

 SJ-5B-1.0dB Step, Value 0 - 10 dB, 0mm knob

9903000261

 SJ-5B-1.5dB Step, Value 0 - 15 dB, 0mm knob

9903000262

 SJ-5B-2.0dB Step, Value 0 - 20 dB, 0mm knob

9903000263

 SJ-5B-0.5dB Step, Value 0 - 5 dB, 10mm knob

9903000264

 SJ-5B-1.0dB Step, Value 0 - 10 dB, 10mm knob

9903000265

 SJ-5B-1.5dB Step, Value 0 - 15 dB, 10mm knob

9903000266

 SJ-5B-2.0dB Step, Value 0 - 20 dB, 10mm knob

9903000267



Reel Package Type: 500 Pieces Reel

Description

Part Number

 SJ-5BS-0.5dB Step, Value 0 - 5 dB, 0mm knob

9903000268

SJ-5BS-1dB Step, Value 0 - 10 dB, 0mm knob

9903000269

SJ-5BS-1.5dB Step, Value 0 - 15 dB, 0mm knob

9903000270

SJ-5BS-2dB Step, Value 0 - 20 dB, 0mm knob

9903000271
