LE-1218US RF Amplifier

Query

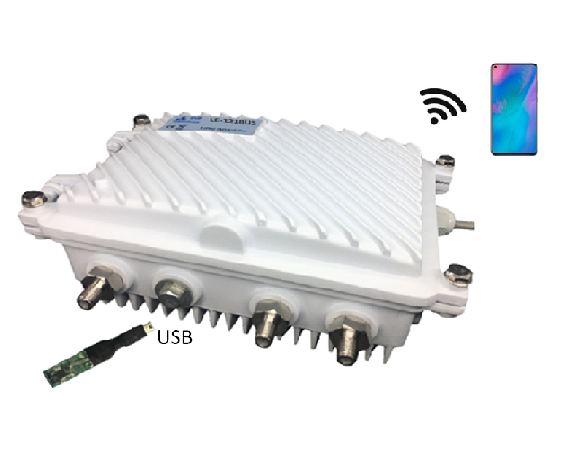

LE-1218US RF Amplifier is a 1.2 GHz bandwidth two-way amplifier. It provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout. GaAs technology is used, that guarantees the excellent CTB and CSO performance. The device's USB port communicates directly to the LE-1218US controller. It's easy to upgrade the system and replace one component.


Features

l  Supports 1.2 GHz bandwidth

l  Up to 204 MHz with return bandwidth

l  Minimum needed of installing and maintaining accessories such as pads and EQs

l  Local monitoring, control and set up via APP or 3 bit digital tube display and adjust keypad

l  On site changing frequency split

l  Switch the reverse path gain adjust and Passive

l  Compact design, small and exquisite

l  GaAs technology in use

l  Improved ESD and Surge protection

l  Low noise figure

l  One or two output can be determined by the splitter position


Specifications

Table 1. Forward Path Specifications

Item

Units

Value

Pass Band

MHz

85/105/258 - 1218

Gain1

dB

42

Frequency Response

dB

± 0.75

Reference Output Level

dBµV

108

Input Attenuator Control Range

dB

0 - 20, 1 dB step

Input Equalizer Control Range

dB

0 - 20, 1 dB step

Input Cable Simulator

dB

0 - 10, 1 dB step, Adjust via JXP PAD

Interstage Attenuator Control Range

dB

0 - 20, 1 dB step

Interstage Equalizer Control Range

dB

0 - 20, 1 dB step

Return Loss

dB

16

RF Input Test Point

dB

- 20 ± 0.75

RF Output Test Point

dB

- 20 ± 0.75

Noise Figure1

dB

7

Umax, 112 QAM Chs2



dBµV

108

Output Level, CENELEC 42 Chs3

CTB: 60dBc3

CSO: 60dBc3

dBµV

112

 Notes:

1.      Forward Gain and Noise Figure measured with 10 dB input EQ and 0 dB input pad.

2.      Maxima level, flat, CLC/TS 50083-3-3, N=24

3.      Distortion performance reference output level is 112 dBµV (1 port, Slope, 10dB @ 1200 MHz). Digital refers to 550 MHz to 1.2 GHz loading with QAM carriers at -6 dB relative to analog CW carrier levels.



Table 2. Return Path Specifications

Item

Units

Value

Pass Band

MHz

5 - 65/85/204

Gain

dB

25

Output Attenuator Control Range

dB

0 - 20, 1 dB step

Output Equalizer Control Range

dB

0 - 20, 1 dB step

Frequency Response

dB

± 0.75

Return Loss

dB

16

RF Test Point

dB

- 20 ± 0.1

Noise Figure

dB

6

Output Level

dBµV

110


Table 3. General Specifications

Item

Units

Value

Power Consumption

W

18

Supply Voltage

V AC

26 - 65 or

110 - 264

RF Connectors

-

F-female, Imperial

(Several Adapters Available)

Test Point

-

F-female, Imperial (Internal)

Dimensions ( W x H x D)

mm

236 x 145 x 90

Weight

kg

1.8

Water/Dust Ingress Protection Rating

-

IP 65

Operating Temperature

°C

- 40 - + 55

Storage Temperature

°C

- 40 - + 80

Relative Humidity Range

-

5% - 95%

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.



Block Diagram


Ordering information

Description

Part Number

LE - 1218US RF Amplifier, 1.2G, 65/85, 60V

9920000024

LE - 1218US RF Amplifier, 1.2G, 85/105, 60V

9920000025

LE - 1218US RF Amplifier, 1.2G, 204/258, 60V

9920000026

LE - 1218US RF Amplifier, 1.2G, 65/85, 230V,Europe Power cord

9920000027

LE - 1218US RF Amplifier, 1.2G, 85/105, 230V,Europe Power cord

9920000028

LE - 1218US RF Amplifier, 1.2G, 204/258, 230V,Europe Power cord

9920000029
