MOR-PON-5 Micro Optical Receiver

Query


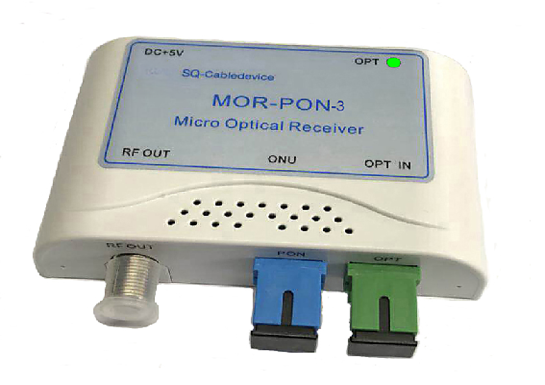

MOR-PON-5 Micro Optical Receiver is a 1 GHz receiver specially designed for FTTH architecture with both Cable TV signals and xPON broadband data.

MOR-PON-5 Micro Optical Receiver provides a single RF output port and a xPON optical loop-through port in a small plastic housing, compact and reasonable internal circuit structure and excellent performance.

MOR-PON-5 Micro Optical Receiver provides loop-through function of xPON optical wavelengths with WDM for the connection between OLT and ONU.

MOR-PON-5 Micro Optical Receiver is a best choice in a residential area for FTTH network.

Features

l  Supports 1 GHz RF pass band

l  AGC built-in with -10 to +2 dBm optical input range

l  -15 dBm low optical input power

l  LED indicator for optical input power with 3 status

l  1270,1310,1490,1577 nm loop-through for xPON application

l  High performance, low power consumption

l  Lovely plastic small housing

l  Installation easily

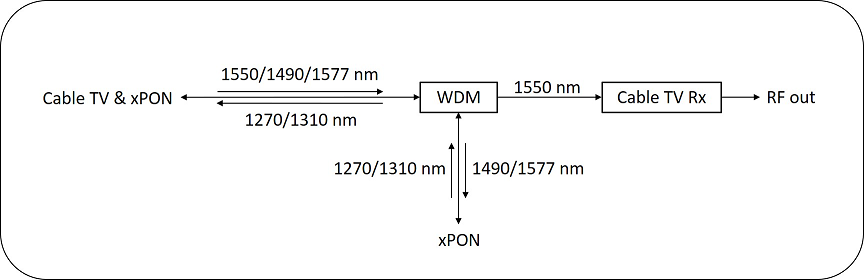

Block Diagram



Specifications

Table 1. Forward Section Specifications

Item

Units

Value

Optical Section

Wavelength for Cable TV

nm

1550

Wavelength for xPON

nm

DS: 1490, 1577

US: 1270,1310

Optical Input Power Range

dBm

-15  +2

Optical AGC Range

dBm

-10  +2

Maximum Optical Input Power

dBm

+ 3

Optical Return Loss

dB

45

Optical Connector

-

SC / APC @ Input port

SC / UPC @ Loop-through port

Insertion Loss @ Loop-through Port

dB

1

Optical Power Indicator (LED)

-

- Orange:  Pin < - 10 dBm

- Green:   - 10 < Pin < +2 dBm

- Red:     Pin > +2 dBm

RF Section





RF Pass Band

MHz

47  1002

RF Flatness

dB

± 0.75

RF Output Level

dBmV

20 @ -10 - +2 dBm, 3.5% OMI

10 @ -15 dBm, 3.5% OMI

RF Output Stability @ AGC

dB

± 1.0

RF Return Loss

dB

16

RF Impedance

75

RF Connector

-

F - female, Imperial

Link Section





Distortion @ 59 PAL D/K + Digital2

CNR

CTB

CSO

MER



dB

dB

dB

dB


47

65

63

37

 Notes: Distortion performance reference output level is 20 dBmV (- 6 dBm optical input power, 3.5% OMI).

Loaded with 59 PAL D/K CW carriers from 47-550 MHz. Digital refers to 550 MHz to 1 GHz loading

with QAM carriers at -10 dB relative to analog CW carrier levels.



Table 2. General Specifications

Item

Units

Value

DC Power Port

-

5.5 ( - ) x 2.1 ( + )  (diameter, mm)

Power Supply Voltage

V DC

5 VDC, 260mA

Power Consumption

W

1.3

Dimensions (W x H x D)

mm

94.5 x 23 x 78

Weight

kg

0.1 (without External power adapter)

0.1 (External power adapter only)

Operating Temperature

°C

 + 40

Storage Temperature

°C

- 20  + 70

Relative Humidity

%

– 90 (non-condensing)

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 68°F (20°C).



Ordering information

Description

Part Number

MOR-PON-5 Micro Optical Receiver, no external power adapter

9934000004

MOR-PON-5 Micro Optical Receiver, 110VAC power adapter, American power cord

9934000005

MOR-PON-5 Micro Optical Receiver, 220VAC power adapter, Chinese power cord

9934000006

MOR-PON-5 Micro Optical Receiver, 220VAC power adapter, European power cord

9934000007
