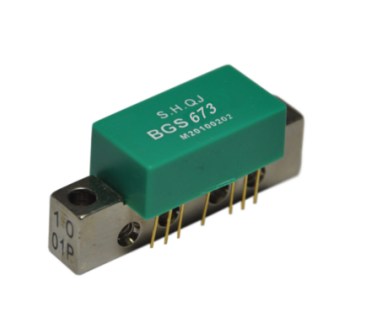

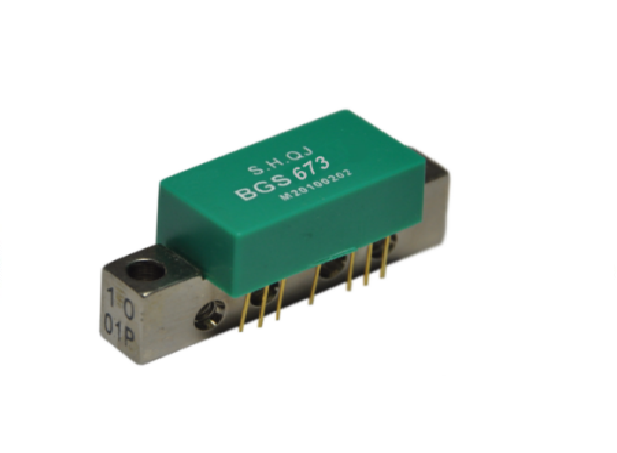

The BGS 673 is a wind bandwidth return path gain block. It provides high gain, low noise, and excellent linearity from 5 to 150 MHz. It is optimized for exceptionally low distortion and low noise figure in a 75 Ω amplifier circuit. It provides excellent input and output return loss over the CATV return path HFC infrastructure.
The device package is complied with standard SOT-115J.
Features
l 30 dB Gain
l 24 V DC Bias
l 42 dBmV/CH Output Power Level
l Excellent Linearity
l Superior Return Loss Performance
l Extremely Low Distortion and Low Noise
l Optimal Reliability
l Unconditionally Stable Under All Terminations
l 200 mA Max. at 24 VDC
Applications
l 5 to 150 MHz CATV Return Path Amplifier Systems
Electrical Specifications: T = +25 °C, V = 24 V, Zin = Zout = 75 Ω
Parameter | Units | Min. | Typ. | Max. | Test Conditions |
Gain | dB | - | 30.0 | - | 5 - 150 MHz |
Slope | dB | - | - | 1.5 | 5 - 150 MHz |
Flatness | dB | - | ±0.5 | - | 5 - 150 MHz |
Noise Figure | dB | - | 5.0 | - | 5 - 150 MHz |
Input Return Loss | dB | 18 | - | 20 | 5 - 150 MHz |
Output Return Loss | dB | 18 | - | 20 | 5 - 150 MHz |
Total Current Consumption (DC) | mA | - | - | 200 | + 24 V |
CTB* | dB | - | 65 | - | Vo=42dBmV |
d2* | dB | - | 67 | - | Vo=42dBmV |
XMOD* | dB | - | 60 | - | Vo=42dBmV |
* 14 channels, flat.
Handling Procedures
Please observe the following precautions to avoid damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity.
Proper ESD control techniques should be used when handling these devices.
Absolute Maximum Ratings
Parameter | Unit | Rating |
RF Input Level | dBmV | 65 |
DC Supply Over-Voltage (5 minutes) | V | 30 |
Storage Temperature | °C | - 40 to +100 |
Operating Mounting Base Temperature | °C | - 20 to +90 |
Alarm: Exceeding any one or a combination of the Absolute Maximum Rating conditions may cause permanent damage to the device. Extended application of Absolute Maximum Rating conditions to the device may reduce device reliability. Specified typical performance or functional operation of the device under Absolute Maximum Rating conditions is not implied.
Ordering information
Description | Part Number |
BGS673 Reverse Gain Block | 9940000040 |
