REV Thermal EQ

Query

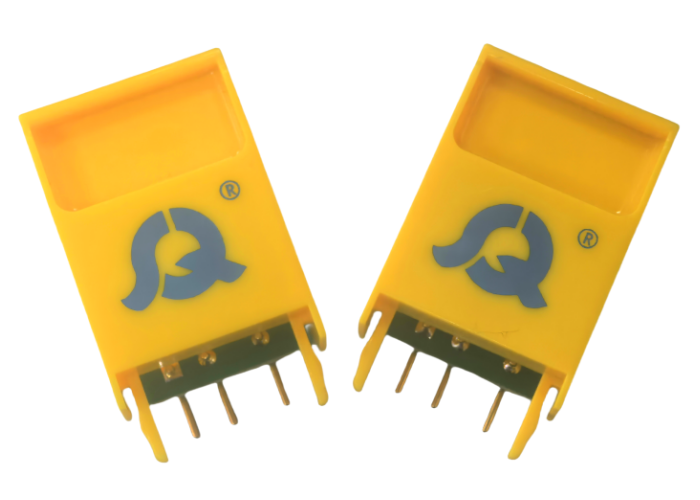

This new set of 204MHz Thermal Reverse Equalizers is designed to embrace the evolution of Docsis technology and help the operators to get the legacy RF Amplifiers upgraded to the new upstream path with the passband of 5-204MHz. The product is featured with the cable type equalization which can help the station to compensate the coaxial cable loss with perfect opposite frequency dependent loss over the temperature range of -20 to +80C. In addition to that, the product shows excellent performance on Flatness and Return Loss.

Electrical Parameters:


Specifications

Item

Units

Value

EQ Values

dB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Tilt (5 to 204 MHz)
 40 °C

dB

　

　

　

　

　

　

　

　

7.7

8.5

9.4

10.2

11.1

12

12.8

13.7

14.5

15.4

16.4

17.3

Frequency

MHz

5 - 204

Tolerance EQ Val.max.

dB

± 0.5

Insertion Loss (204 MHz)
 40 °C

dB

　

　

　

　

　

　

　

　

2

2

2.5

2.5

2.5

2.5

2.6

2.6

2.6

2.6

2.6

2.6

Tolerance Insertion Loss
(204 MHz)

dB

± 0.5

Flatness（Peak to valley）

dB

± 0.5

Return Loss

dB

16@40⁰C

Impedance

Ω

75

Ordering information

Description

Part Number

Type

204MHz REV thermal EQ 1.0dB

9907010101

204MHz REV thermal EQ 2.0dB

9907010102

204MHz REV thermal EQ 3.0dB

9907010103

204MHz REV thermal EQ 4.0dB

9907010104

204MHz REV thermal EQ 5.0dB

9907010105

204MHz REV thermal EQ 6.0dB

9907010106

204MHz REV thermal EQ 7.0dB

9907010107

204MHz REV thermal EQ 8.0dB

9907010108

204MHz REV thermal EQ 9.0dB

9907010109

204MHz REV thermal EQ 10.0dB

9907010110

204MHz REV thermal EQ 11.0dB

9907010111

204MHz REV thermal EQ 12.0dB

9907010112

204MHz REV thermal EQ 13.0dB

9907010113

204MHz REV thermal EQ 14.0dB

9907010114

204MHz REV thermal EQ 15.0dB

9907010115

204MHz REV thermal EQ 16.0dB

9907010116

204MHz REV thermal EQ 17.0dB

9907010117

204MHz REV thermal EQ 18.0dB

9907010118

204MHz REV thermal EQ 19.0dB

9907010119

204MHz REV thermal EQ 20.0dB

9907010120
