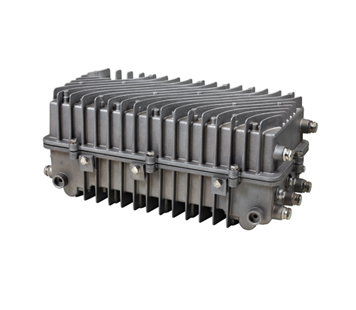

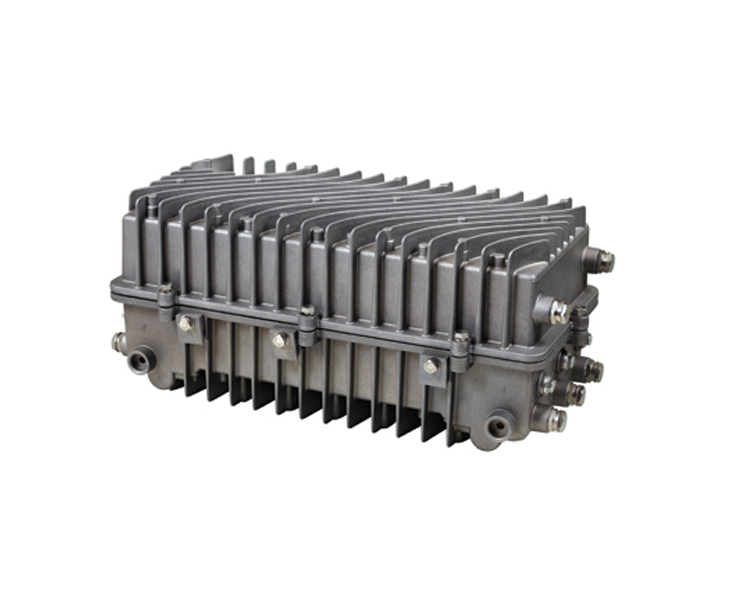

NOR1GT/4 CWDM type is a two ways optical station and the ideal platform for delivering video (digital or analog) as well as high-speed data services over advanced hybrid fiber/coax (HFC) network; this Optical Node combines the superior proven technologies of both the RF amplifier and optical components. Available with four high levels RF output ports. With its modular design of fiber receiver reverse fiber transmitter and RF amplifier electronics, the NOR1GT/4 can provide the full complement of functions required by advanced networks.
Features
● Four high
level output ports with Ga As power double amplifier module
● 25 ampere
current capacity (steady state) and 25 ampere surge survivability
● Surge Resistant Circuitry ensures gain stage protection without fuses or
other nuisance failure-causing device.
●Two 40-90V AC high-efficacy switch mode power supplys
● Forward
redundancy with two 1310/1550 nm optical receivers (optional)
● Standard fiber management tray provides fiber and connector storage for
up 6 connector pairs.
●Four reverse transmitters
according to four ports and xixed witch CWDM using only one pieces of fiber for
up and down streams.
● Local test points and LED indicators on optical receivers, transmitters,
and optical simplify installation and maintenance
● Optical status
monitoring and control
● The NOR1GT/4
launch amplifier uses fixed-value plug-in accessories
● Forward output test point and Reverse input test point for each port on
NOR1GT/4 launch amplifier allow optimum design and alignment
l Forward Specifications
Forward Optical Performance |
|
Wavelength |
1310 or 1550 nm |
Optical Input Power |
-5 to 0 dBm |
Pass Band |
54 to 1000 MHz |
Optical Return Loss |
-55 dB |
Connector (Option) |
SC / APC |
Forward RF Performance |
|
Pass Band |
54 to 1000 MHz |
Output Level (@ -1 dBm
optical input) |
+45 dBmV |
Frequency Response |
+/- 1 dB |
Noise Figure |
9 dB |
C/N (@ -1 dBm optical
input) |
≥ 51 dB |
Composite Second Order (@
-1 dBm optical input) |
≥ -65 dBc |
Composite Triple Beat (@
-1 dBm optical input) |
≥ -65 dBc |
Cross Modulation (@ -1
dBm optical input) |
≥ -65 dBc |
Chrominance to Luminance
Delay |
< 15 nSec |
Return Loss |
≥16 dB |
Impedance |
75 ohm |
Connector |
KS 5/ 8” RF Port or “F” |
Note: the
specifications listed below are minimum requirements using 78 NTSC channel (CW)
loading from 55 to 550 MHz and digital from 550 to 1000 MHz. Digital loading is –6 dB below analog
levels.
l Return Specifications
Return Optical Performance |
|
Wavelength (Option) |
1470 to 1570 nm |
Band Pass (Option) |
5 to 42 MHz |
Output Power |
1 mW |
C/N (2 NTSC channel loading) |
>48 db |
Optical Return Loss |
-55 dB |
Connector |
SC / APC |
Return RF Performance |
|
Band Pass (Option) |
5 to 42 MHz |
Input Level (Max for 50% total OMI) |
-47 dB mV/Hz |
Frequency Response |
+/- 1 dB |
l Other Specifications
Power Supply |
||
External AC Adapter |
Import AC voltage (50-60Hz) |
45 V to 90 V |
Power consume |
DC -6V|,+15V,+ 24V |
<92W |
Others |
||
Temperature Rating |
-22 ° F to +122° F |
|
Humidity Rating: |
non-condensing. |
Up to 95% |
Size |
LⅩWⅩH (mm) |
480Ⅹ280Ⅹ230 |
Weight |
g |
4500 |
