LA 8630IIT-2

Query

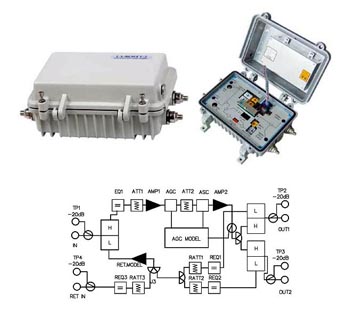

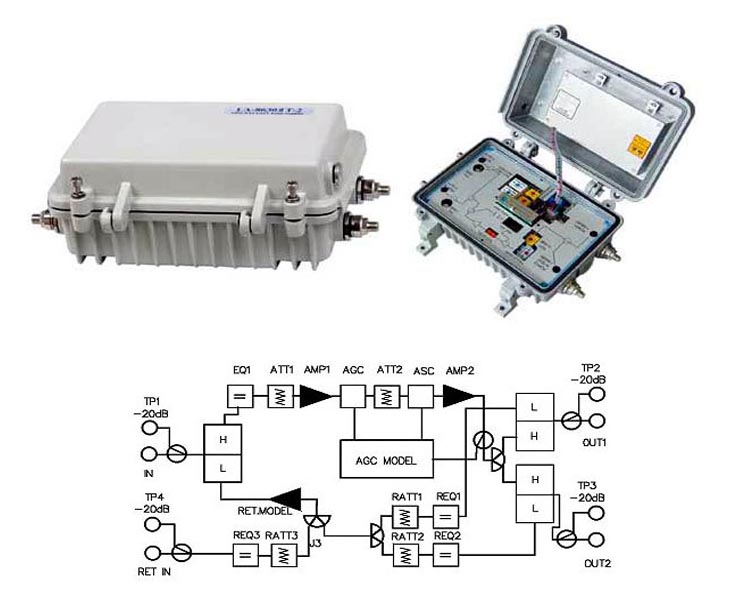

LA8630ⅡT-2 is a two-way line amplifier with two outputs designed by our company. It integrates forward amplifier, reverse amplifier and thermal compensator in a water-resistant box, it possessed of power double amplifier output, high- performance, reliability 、low price and optimized for HFC TV network.

Features

u  Automatic adjusts gain accord to the output level or environment temperature.

u  Use two-way amplifier can transport TV and data signals

u  Switch power supply.

u  Use GaAs power double amplifier module.

u  Water-resistant and outdoor box suit for all occasion

       u  Diplex filter similar as SA and other big company,optional band splitting


FREQUENCY BANDWIDTH

FORWARD

47,65,88～860MHz

REVERSE(option)

5 - 30,42,65MHz

GAIN

FORWARD

30dB

REVERSE(option)

22dB

NOISE FIGURE

FORWARD

≤10dB

REVERSE

≤8dB

OUTPUT LEVEL

FORWARD

102dBμV

PIOLT FEQUENCY

471MHz(option)

AGC RANGE(option)

±4dB±0.3dB

CTB

FORWARD 59Pal-D Channel loading& 200MHz Digital signal,Output 102dBuV (flat)

≥65dB

CSO

≥63dB

RETURN LOSS (Impedance 75 ohm)

FORWARD

≥15dB

REVERSE

≥15dB

FLATNESS

FORWARD

±0.75dB

REVERSE

±0.75dB

THERMAL COMPENSATOR(option)

COMPENSATOR RANGE 0℃～60℃

3.5dB

POWER SUPPLY

60VAC：30V～70V/1-0.5A
220VAC：150v～265V /0.3-0.2A

OPERATING EMPERATURE

-20℃ TO +50℃

WEIGHT

2.5Kg

DIMENSIONS(LxWxH)

28cmx209cmx10cm
